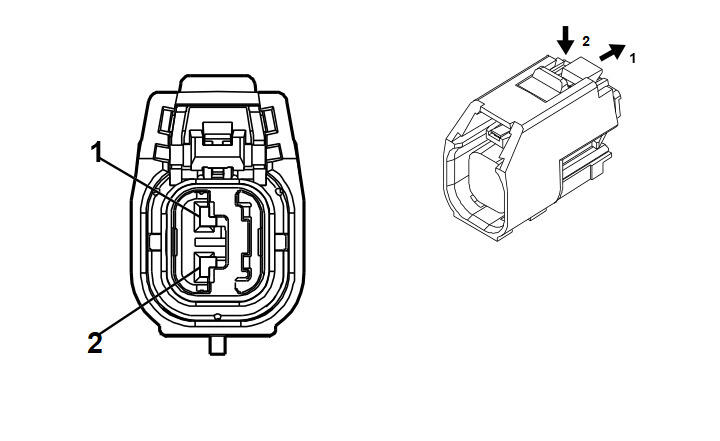

B5RF Wheel Speed Sensor - Right Front
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body Harness
- OEM Connector: 13599819
- Service Connector: Not Available
- Description: 2 -Way F 1.5 YESC Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-14 (GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GY / BN |
7065 |
Right Front Wheel Speed Sensor Control |
I |
- |
| 2 |
0.5 |
YE |
872 |
Right Front Wheel Speed Sensor Signal |
I |
- |
