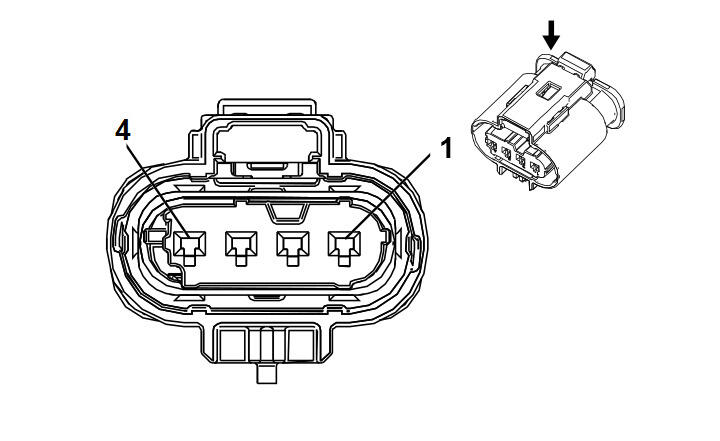

B52A Heated Oxygen Sensor 1 (LYX)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Engine Harness
- OEM Connector: 13503577
- Service Connector: Not Available
- Description: 4 -Way F 1.2 Multilock Series, Sealed (D-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GY / WH |
3113 |
HO2S Heater Low Control Bank 1 Sensor 1 |
I |
- |
| 2 |
0.5 |
VT / BU |
5293 |
Powertrain Main Relay Fused Supply Voltage 4 |
I |
- |
| 3 |
0.5 |
WH / BK |
3111 |
HO2S Low Signal Bank 1 Sensor 1 |
I |
- |
| 4 |
0.5 |
VT / GY |
3110 |
HO2S High Signal Bank 1 Sensor 1 |
I |
- |
