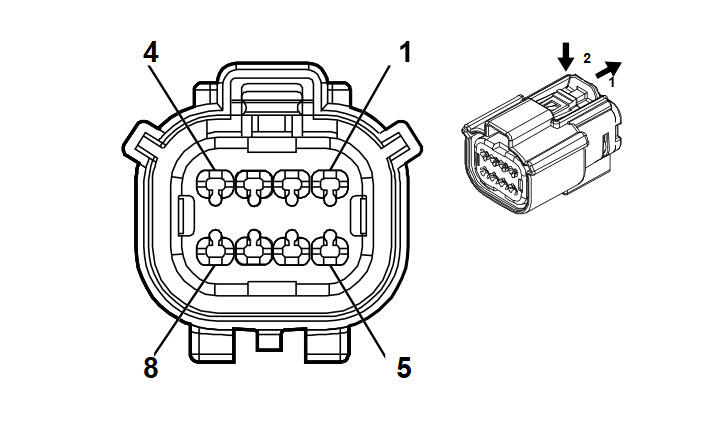

B52A Heated Oxygen Sensor 1 (LTG)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Engine Harness
- OEM Connector: 33472-4927
- Service Connector: 19369368
- Description: 8 -Way F 1.5 MX Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-14 (GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BN |
6934 |
HO2S Ground |
I |
LTG |
| 2 |
0.5 |
YE / GY |
6936 |
HO2S Signal |
I |
LTG |
| 3 |
0.5 |
BN / WH |
6933 |
HO2S Pump Current Signal |
I |
LTG |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.5 |
VT / BU |
5293 |
Powertrain Main Relay Fused Supply Voltage 4 |
I |
LTG |
| 6 |
0.5 |
GY / WH |
3113 |
HO2S Heater Low Control Bank 1 Sensor 1 |
I |
LTG |
| 7 |
0.5 |
GN |
6935 |
HO2S Pump Current Trim Signal |
I |
LTG |
| 8 |
- |
- |
- |
Not Occupied |
- |
- |
