B51F Suspension Height Sensor - Front (TR7)
 Courtesy of GENERAL MOTORS COMPANY
|

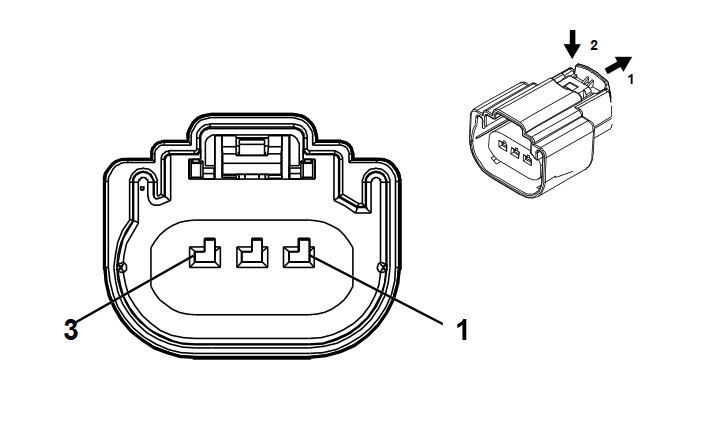

Connector Part Information
- Harness Type: Forward Lamp Harness
- OEM Connector: 13510883
- Service Connector: Not Available
- Description: 3 -Way F 1.5 MX Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-14 (GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
WH / RD |
7524 |
Front Vehicle Level Sensor 5V Reference |
I |
T4L+TR7 |
| 2 |
0.35 |
BK / GY |
7526 |
Front Axle Level Sensor Low Reference |
I |
T4L+TR7 |
| 3 |
0.35 |
BN / WH |
7525 |
Front Vehicle Level Sensor Signal |
I |
T4L+TR7 |
