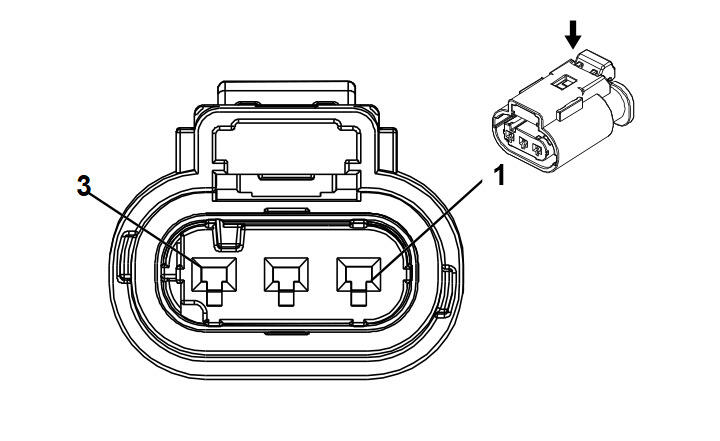

B37B Engine Oil Pressure Sensor (LYX)

Courtesy of GENERAL MOTORS COMPANY

Connector Part Information Harness Type: Engine Harness OEM Connector: 13503573 Service Connector: Not Available Description: 3 -Way F 1.2 Multilock Series, Sealed (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	Not required	J-35616-16 (LT GN)	No Tool Required

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.5	YE / BN	331	Oil Pressure Sensor Signal	I	-
2	0.5 0.5	BK / GN BK / VT	580 2755	Engine Control Sensors Low Reference 2 Oil Pressure Sensor Low Reference	I I	(LYX)+(E88) E80+LYX
3	0.5 0.5	BU / RD WH / RD	460 2705	Engine Control Sensors 5 Volt Reference 1 Oil Pressure Sensor 5V Reference	I I	(LYX)+(E88) E80+LYX
