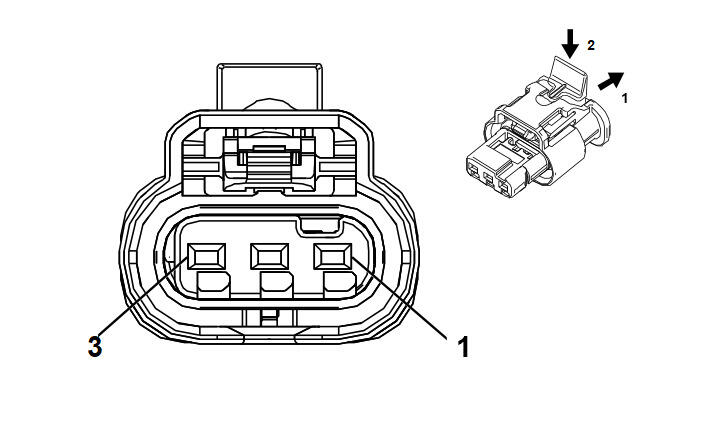

B26 Crankshaft Position Sensor (LYX)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Engine Harness
- OEM Connector: 13594670
- Service Connector: Not Available
- Description: 3 -Way F 1.2 MCP Series, Sealed (BN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
VT / BU |
6270 |
Crankshaft Position Sensor Voltage |
I |
- |
| 2 |
0.5 |
BK / VT |
6272 |
Crankshaft Position Sensor Low Reference |
I |
- |
| 3 |
0.5 |
GN |
6271 |
Crankshaft Position Sensor Signal |
I |
- |
