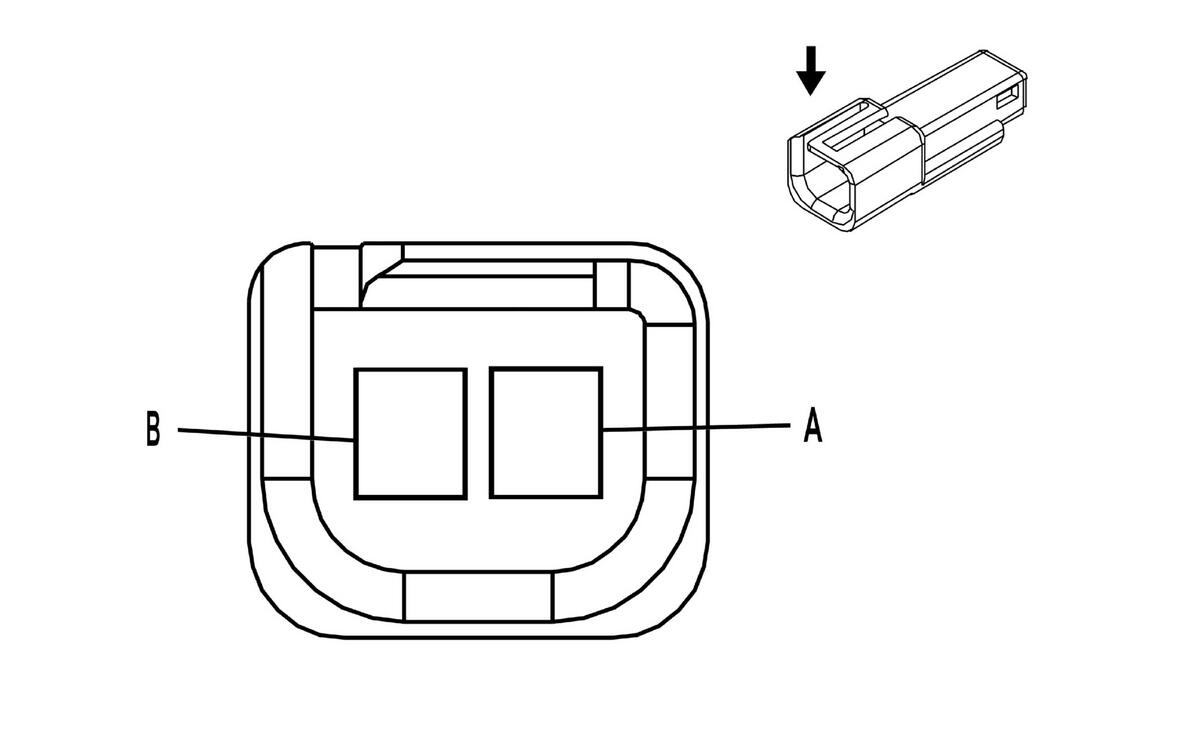

A3L Sunshade - Left
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | Not required | J-35616-3 (GY) | No Tool Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| A | 0.35 | WH / BN | 6815 | Inadvertent Load Control | I | - |
| B | 0.35 | BK | 2050 | Ground | I | - |
