A24D Door Handle Assembly - Driver Exterior

Courtesy of GENERAL MOTORS COMPANY

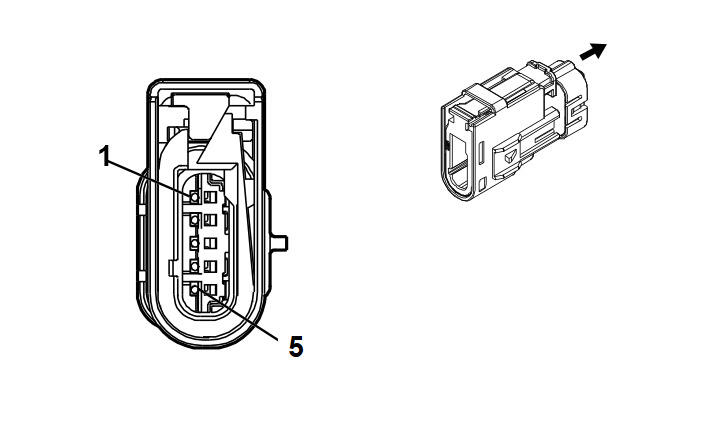

Connector Part Information Harness Type: Driver Door Harness OEM Connector: 13519366 Service Connector: Service by Harness - Description: 5 -Way M 1.2 Series, Sealed (NA)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	Not required	J-35616-13 (BU)	No Tool Required
II	Not required	J-35616-17 (LT GN)	No Tool Required

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.35 0.35	GN / WH GN / WH	3570 3570	Driver Door Handle Switch Signal Driver Door Handle Switch Signal	II I	(ATH/AVJ)+X88 (ATH/AVJ)+Z88
2	0.35 0.35	VT VT	3560 3560	Driver Door Passive Entry Antenna High Signal Driver Door Passive Entry Antenna High Signal	II I	X88 Z88
3	-	-	-	Not Occupied	-	-
4	0.35 0.35	VT / GY VT / GY	3561 3561	Driver Door Passive Entry Antenna Low Signal Driver Door Passive Entry Antenna Low Signal	II I	X88 Z88
5	0.35 0.35	BK BK	1550 1550	Ground Ground	II I	(ATH/AVJ)+X88 (ATH/AVJ)+Z88
