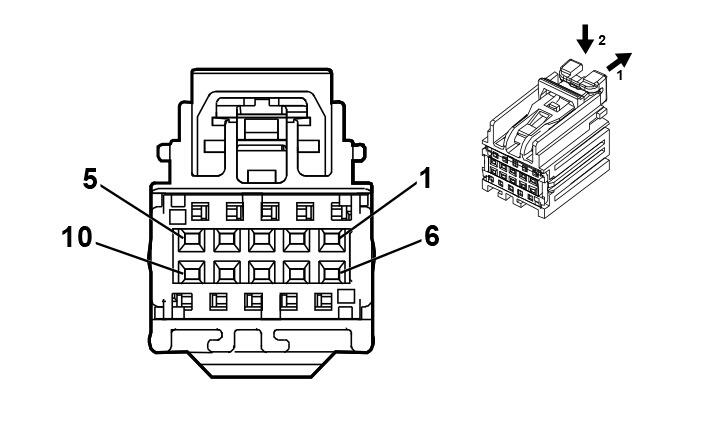

A23LR Door Latch Assembly - Left Rear
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Left Rear Door Harness
- OEM Connector: 13508196
- Service Connector: Service by Harness -
- Description: 10 -Way F 0.64 YESC Kaizen Series (GN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-64B (LT BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GY |
747 |
Left Rear Door Ajar Switch Signal |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
BK |
1550 |
Ground |
I |
- |
| 4 - 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
0.75 |
GY |
295 |
Door Lock Actuator Lock Control |
I |
- |
| 8 |
0.75 |
BN / YE |
294 |
Door Lock Actuator Unlock Control |
I |
- |
| 9 - 10 |
- |
- |
- |
Not Occupied |
- |
- |
