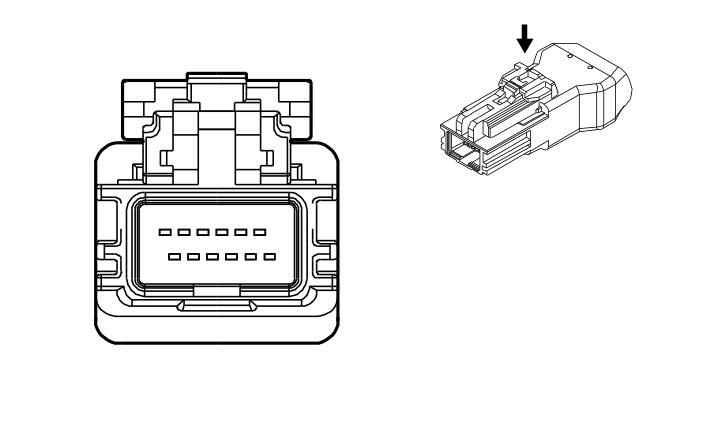

A11 Radio X4 ((IOS/IOT/IOU)+(MCR+MCZ))

Courtesy of GENERAL MOTORS COMPANY

Connector Part Information Harness Type: Instrument Panel Harness USB OEM Connector: 13511514 Service Connector: Service by Cable Assembly - Description: 12 -Way M 2.0 HSAL-2 Series (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	Not required	No Tool Required	No Tool Required

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
-	-	USB	-	USB Serial Data	I	-
