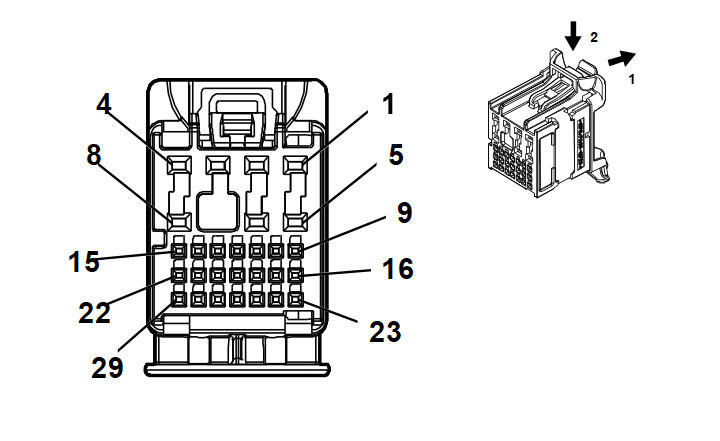

A11 Radio X2 (IOS/IOT/IOU)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Instrument Panel Harness
- OEM Connector: 13534971
- Service Connector: Not Available
- Description: 29 -Way F 0.5 NANO, 1.2 MCON Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
|
J-35616-12 (BU) |
J-38125-215A |
| II |
19370262 |
EL-35616-58 (BK) |
EL-38125-58 |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
GN |
199 |
Left Rear Speaker [+] Control |
I |
NKC+UZ6+(IOS/IOU) |
| 2 |
0.75 |
BU |
201 |
Left Front Speaker 1 [+] Control |
I |
NKC+UZ6+(IOS/IOU) |
| 3 |
0.75 |
YE / BK |
117 |
Right Front Speaker [-] Control 1 |
I |
NKC+UZ6+(IOS/IOU) |
| 4 |
0.75 |
BU / BK |
115 |
Right Rear Speaker [-] Control |
I |
NKC+UZ6+(IOS/IOU) |
| 5 |
0.75 |
BN / BU |
118 |
Left Front Speaker [-] Control 1 |
I |
NKC+UZ6+(IOS/IOU) |
| 6 |
0.75 |
YE |
200 |
Right Front Speaker 1 [+] Control |
I |
NKC+UZ6+(IOS/IOU) |
| 7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
0.75 |
WH |
46 |
Right Rear Speaker [+] Control |
I |
NKC+UZ6+(IOS/IOU) |
| 9 |
0.35 |
BU / GN |
1304 |
High Speed GMLAN Serial Data [+] 9 |
II |
- |
| 10 |
0.35 |
WH / GN |
1305 |
High Speed GMLAN Serial Data [-] 9 |
II |
- |
| 11 |
0.35 |
BU / GN |
1304 |
High Speed GMLAN Serial Data [+] 9 |
II |
IOS/IOT/IOU |
| 12 |
0.35 |
WH / GN |
1305 |
High Speed GMLAN Serial Data [-] 9 |
II |
IOS/IOT/IOU |
| 13 |
0.35 |
GN / WH |
1324 |
Backup Lamp Control |
II |
IOS/IOT/IOU |
| 14 |
0.35 |
GN / YE |
7066 |
Entertainment Remote Enable Signal |
II |
NKC+UZ6+(IOS/IOU) |
| 15 - 17 |
- |
- |
- |
Not Occupied |
- |
- |
| 18 |
0.35 |
GY / GN |
1102 |
Low Speed GMLAN Serial Data 2 |
II |
IOS/IOT/IOU |
| 19 - 27 |
- |
- |
- |
Not Occupied |
- |
- |
| 28 |
0.35 |
WH / BU |
5986 |
Serial Data Communication Enable |
II |
IOS/IOT/IOU |
| 29 |
- |
- |
- |
Not Occupied |
- |
- |
