A11 Radio X2 (IOR)

Courtesy of GENERAL MOTORS COMPANY

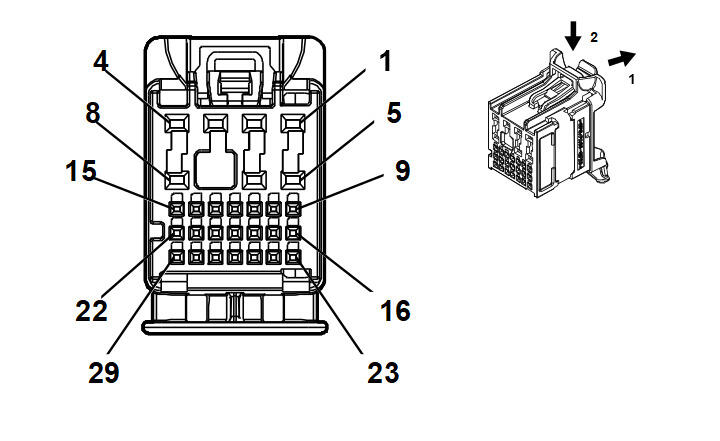

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I		J-35616-12 (BU)	J-38125-215A
II	19370262	EL-35616-58 (BK)	EL-38125-58

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.75	GN	199	Left Rear Speaker [+] Control	I	IOR+UZ6
2	0.75	BU	201	Left Front Speaker 1 [+] Control	I	IOR+UZ6
3	0.75	YE	200	Right Front Speaker 1 [+] Control	I	IOR+UZ6
4	0.75	BU / BK	115	Right Rear Speaker [-] Control	I	IOR+UZ6
5	0.75	BN / BU	118	Left Front Speaker [-] Control 1	I	IOR+UZ6
6	0.75	YE / BK	117	Right Front Speaker [-] Control 1	I	IOR+UZ6
7	-	-	-	Not Occupied	-	-
8	0.75	WH	46	Right Rear Speaker [+] Control	I	IOR+UZ6
9	0.35 0.35	BK / GY BK / BN	5152 654	Voice Recognition Audio [-] Control Cellular Telephone Microphone Low Reference	II II	IOR+(UE1) IOR-UE1
10	0.35 0.35	GY / YE BU	5149 655	Voice Recognition Audio Signal Cellular Telephone Microphone Signal	II II	IOR+(UE1) IOR-UE1
11	-	-	-	Not Occupied	-	-
12	0.35	GY / YE	6972	Rearview Camera Signal [+]	II	IOR+UVC
13	0.35	WH / BU	6973	Rearview Camera Signal [-]	II	IOR+UVC
14	0.35	WH / GN	1776	Active Noise Cancellation Microphone 4 Low Reference	II	IOR+NKC
15	0.35	VT / BU	1775	Active Noise Cancellation Microphone 4 Signal	II	IOR+NKC
16 - 19	-	-	-	Not Occupied	-	-
20	0.35	GY / BN	3010	Active Noise Cancellation Microphone 3 Feedback signal	II	IOR+NKC
21	0.35	GY / BU	3007	Active Noise Cancellation Microphone 3 Signal	II	IOR+NKC
22	0.35	BU / BK	3009	Active Noise Cancellation Microphone 2 Feedback Signal	II	IOR+NKC
23 - 26	-	-	-	Not Occupied	-	-
27	0.35	GN / BN	3005	Active Noise Cancellation Microphone 1 Signal	II	IOR+NKC
28	0.35	GN / BK	3008	Active Noise Cancellation Microphone 1 Feedback Signal	II	IOR+NKC
29	0.35	BU / YE	3006	Active Noise Cancellation Microphone 2 Signal	II	IOR+NKC
