Rear Side Door Armrest Switch Mount Plate Replacement (Terrain)

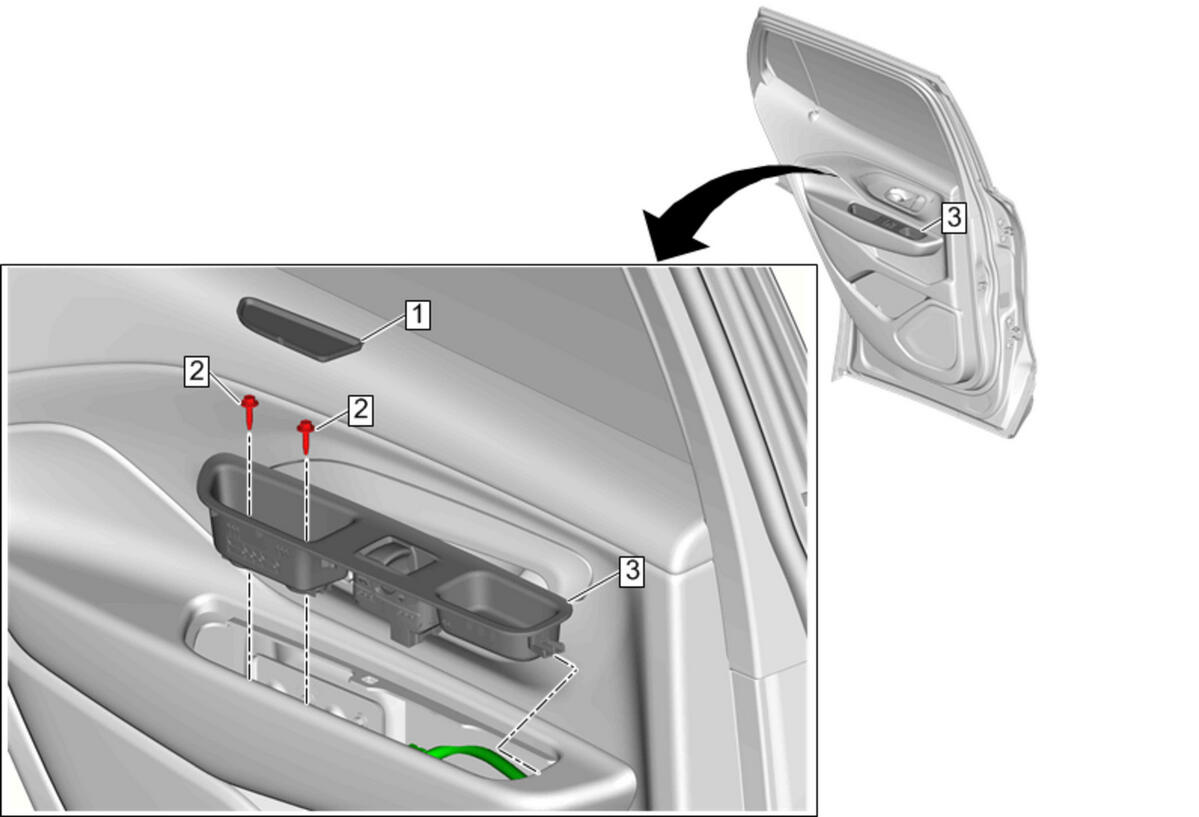

GM4710077Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Side Door Armrest Pull Cup Bolt Cap
2 Rear Side Door Armrest Pull Cup Bolt [ 2x ]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb/in)
3 Rear Side Door Armrest Switch Mount Plate

Procedure

  1. Using a flat-bladed plastic trim tool, start at the rear of the armrest switch mount plate and gently insert trim tool to lift the rear side door armrest switch mount plate from the door trim assembly.
  2. Rotate the armrest switch mount plate up and rearward to unhook the front retaining feature.
  3. Disconnect the electrical connector.
  4. Transfer parts as necessary.
