Front Side Door Armrest Switch Mount Plate Replacement (Passenger Side, Terrain)

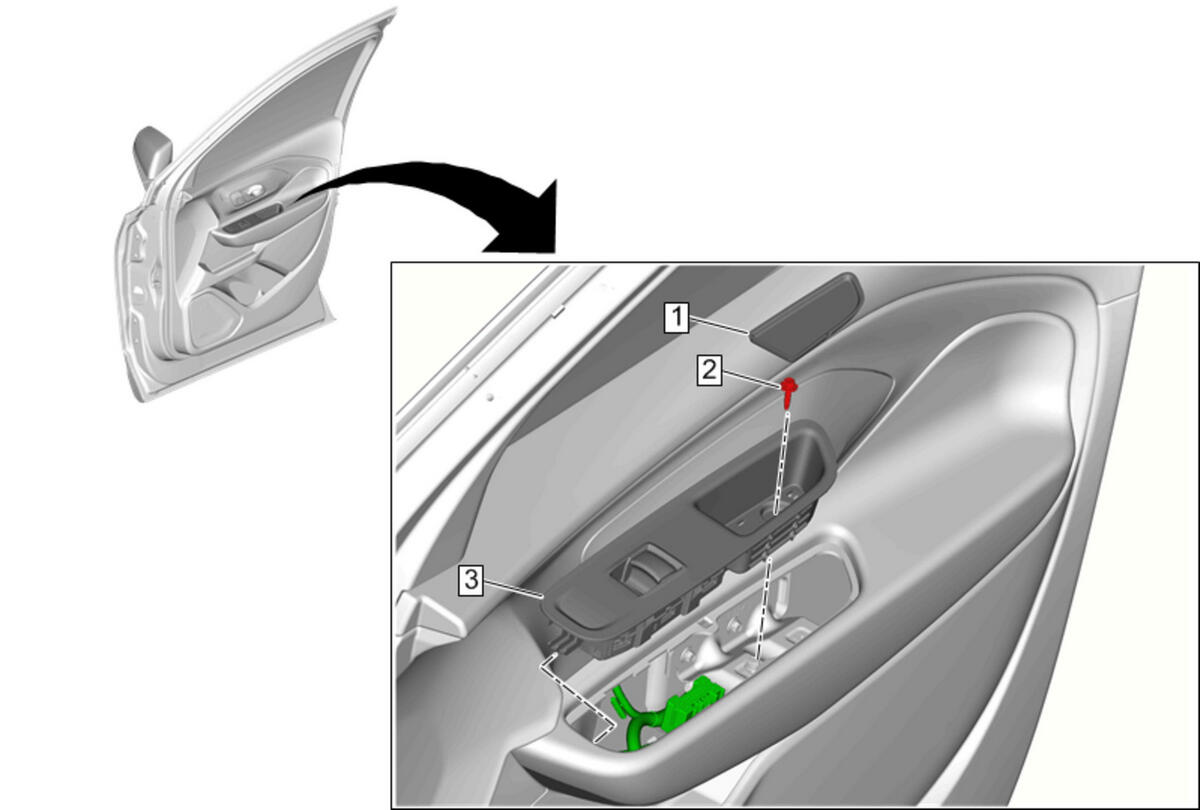

GM4739042Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Side Door Armrest Pull Cup Bolt Cap
2 Front Side Door Armrest Pull Cup Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb/in)
3 Front Side Door Armrest Switch Mount Plate

Procedure

  1. Using a flat-bladed plastic trim tool, start at the rear of the front side door armrest switch mount plate and gently insert trim tool to lift the front side door armrest switch mount plate from the door trim assembly.
  2. Rotate the front side door armrest switch mount plate up and rearward to unhook the front retaining feature.
  3. Disconnect the electrical connector.
  4. Transfer parts as necessary.
