Active Noise Cancellation Module Replacement (Equinox)

Courtesy of GENERAL MOTORS COMPANY

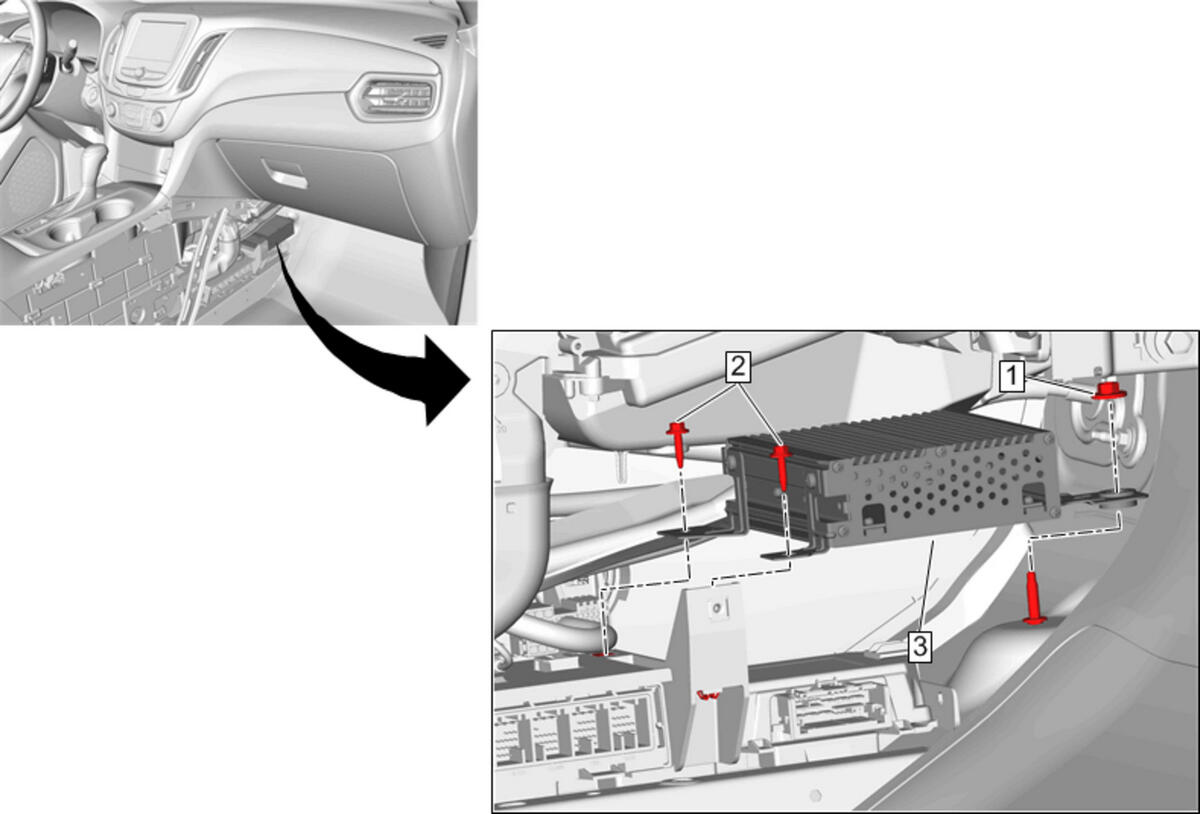

Callout	Component Name
Preliminary Procedures Front Floor Console Extension Panel Replacement - Left Side (Equinox) Front Floor Console Extension Panel Replacement - Right Side (Equinox)
1	Radio Speaker Amplifier Nut CAUTION: Fastener Caution Tighten 6 N.m (53 lb/in)
2	Radio Speaker Amplifier Bolt Tighten 2.5 N.m (22 lb/in)
3	Active Noise Cancellation Module Procedure Disconnect the electrical connectors.
