Advanced Parking Assist Alarm Sensor Replacement (Terrain)

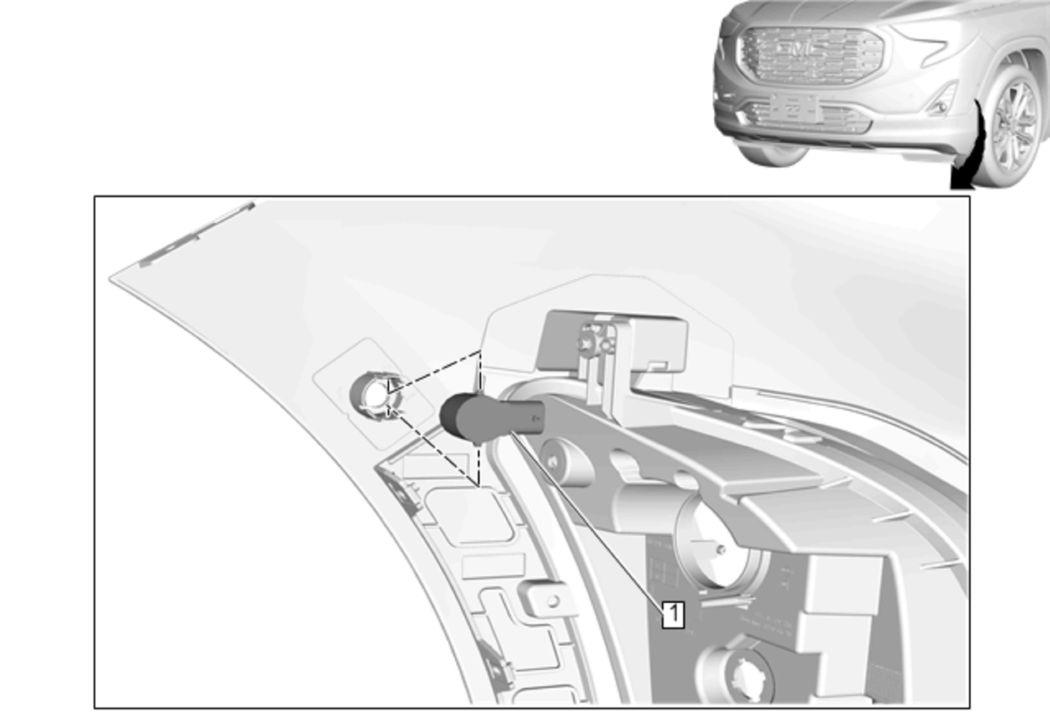

GM4692603Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Bumper Fascia Removal and Installation (Terrain)
1 Advance Parking Assist Alarm Sensor

Procedure

  1. Disconnect the electrical connector.
  2. Release the locking tab from the front parking assist alarm sensor bracket.
