Advanced Parking Assist Alarm Sensor Replacement (Equinox)

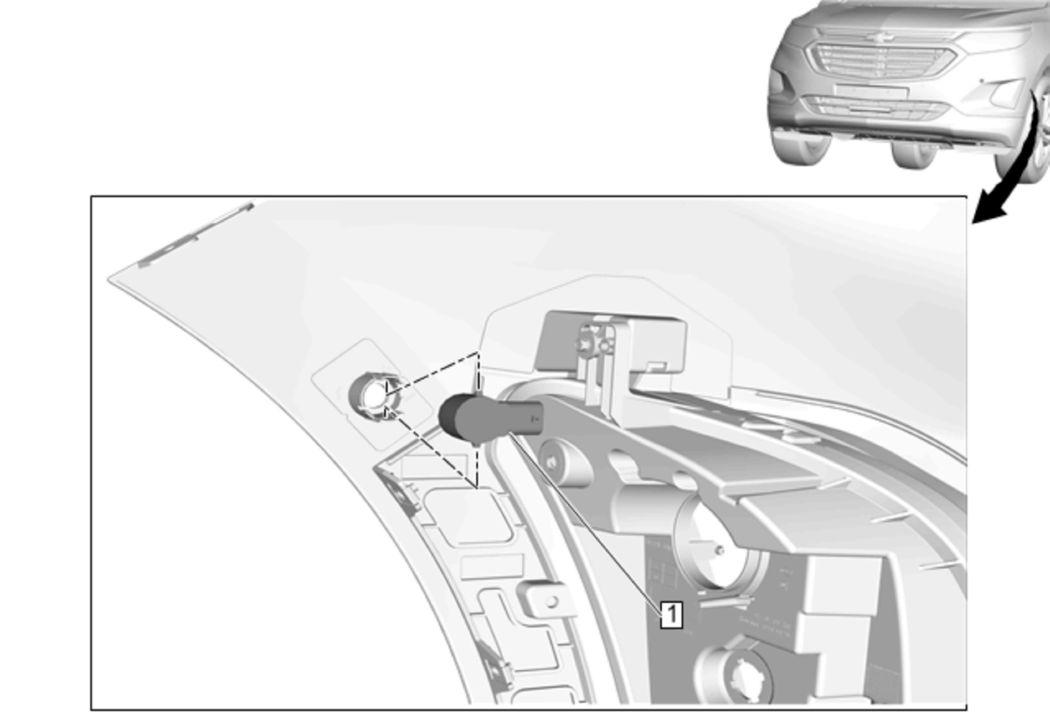

GM4585954Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Bumper Fascia Removal and Installation (Equinox)
1 Advance Parking Assist Alarm Sensor

Procedure

  1. Disconnect the electrical connector.
  2. Release the locking tab from the front parking assist alarm sensor bracket.
