Fuel Injector Harness Routing - Rear of the Engine (LTG)

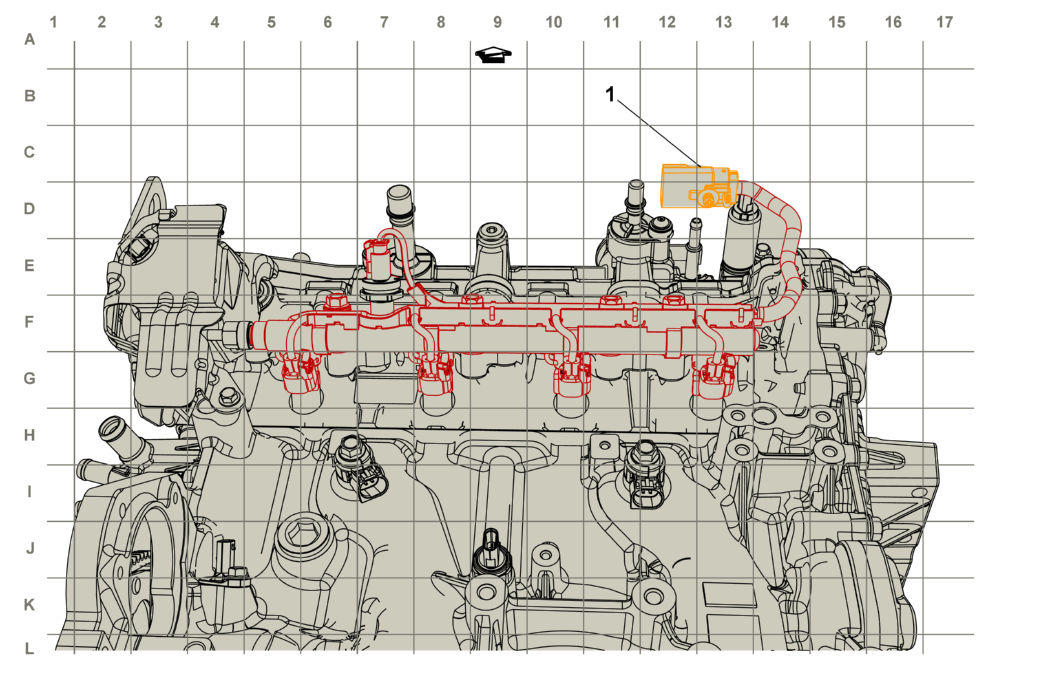

GM4595332Courtesy of GENERAL MOTORS COMPANY
Fuel Injector Harness Routing - Rear of the Engine (LTG)

Harness Name Callout
X160 Engine Harness to Fuel Injector Harness (LTG/LYX) X160 Engine Harness to Fuel Injector Harness (LTG) 1
