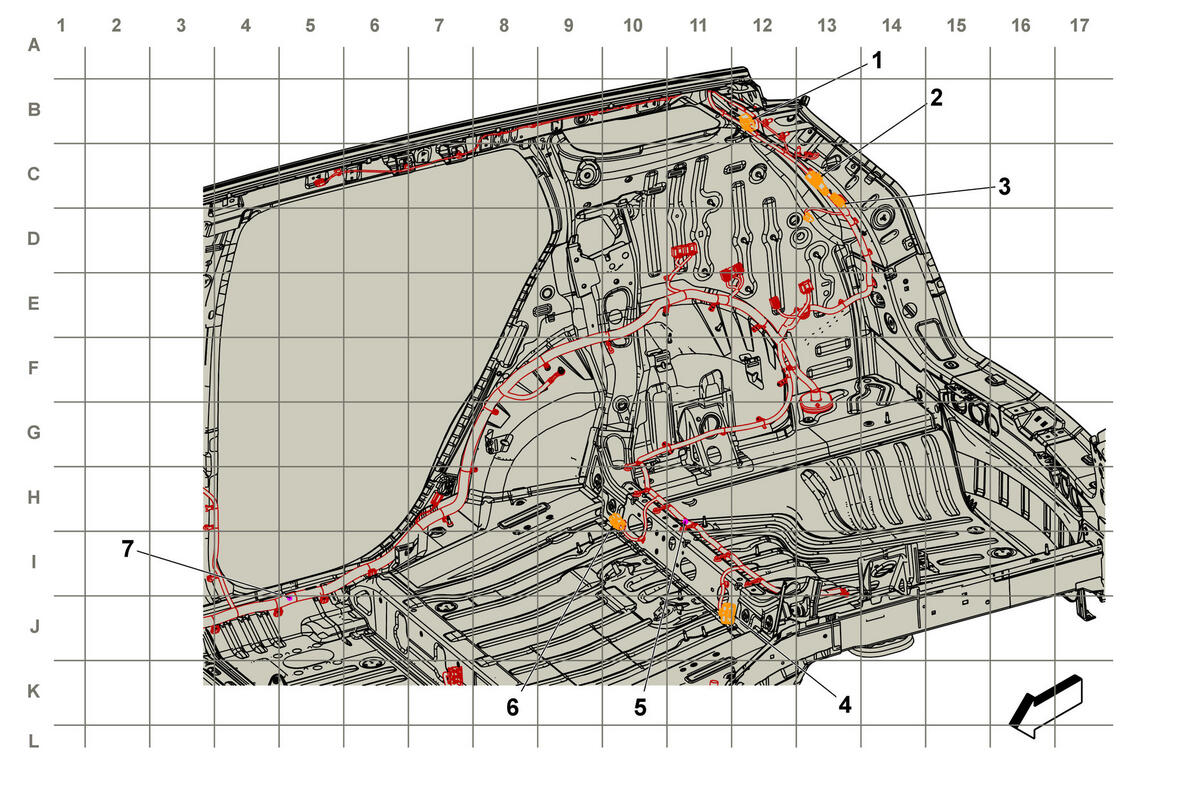

Body Harness Routing - Right Rear of the Passenger Compartment
Body Harness Routing - Right Rear of the Passenger Compartment
| Harness Name | Callout |
|---|---|
| X405 Sunroof Harness to Body Harness (C3U) X405 Sunroof to Body Harness (C3U) | 1 |
| X404 Headliner Harness to Body Harness X404 Headliner Harness to Body Harness | 2 |
| X403 Headliner Harness to Body Harness X403 Headliner Harness to Body Harness | 3 |
| X330 Body Harness to Left Rear Seat Harness X330 Body Harness to Left Rear Seat Harness | 4 |
| J406 Body Harness | 5 |
| X340 Body Harness to Right Rear Seat Harness X340 Body Harness to Right Rear Seat Harness | 6 |
| J332 Body Harness | 7 |
