Radio and Navigation Antenna Cable Replacement

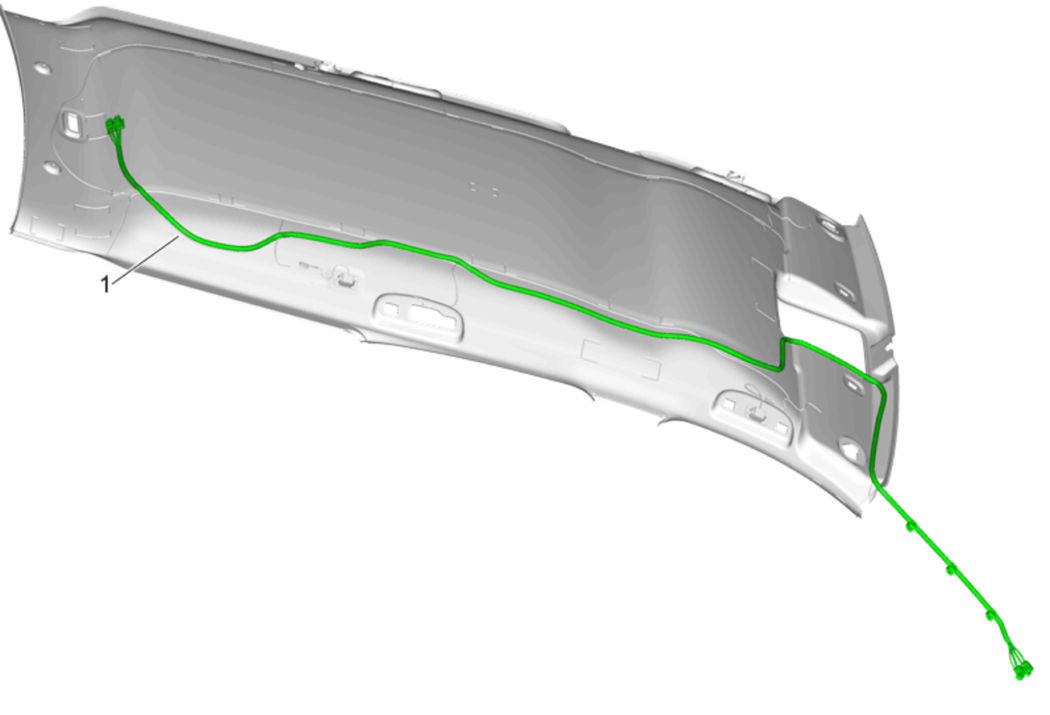

GM4580394Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Headlining Trim Panel Replacement
1 Radio and Navigation Antenna Cable
Procedure
Using an adhesive, secure the harness back onto the headlining trim panel.
NOTE:

Prior to removal, note the routing of the cable to aid in reassembly and ensure proper installation.
