Radio Speaker Amplifier Replacement (Terrain)

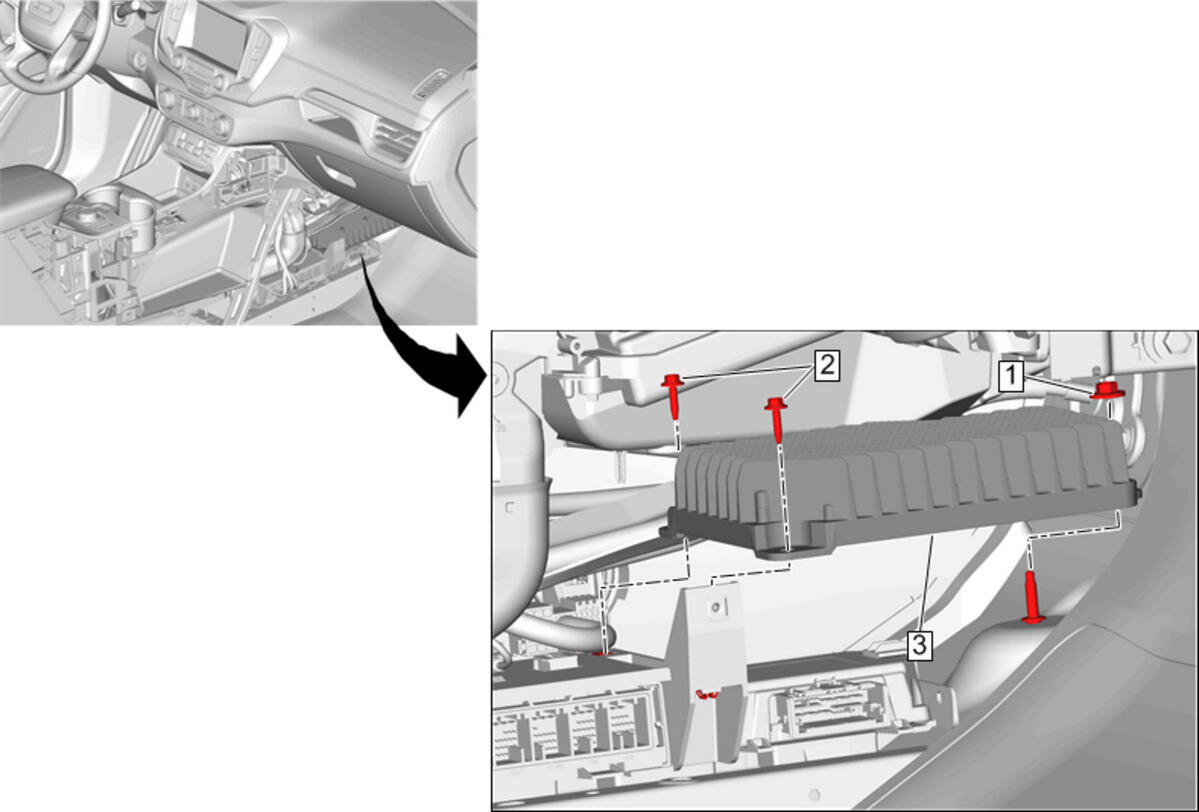

GM4674670Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Front Floor Console Extension Panel Replacement - Left Side (Terrain)
  2. Front Floor Console Extension Panel Replacement - Right Side (Terrain)
1 Radio Speaker Amplifier Nut
CAUTION:

Fastener Caution


Tighten
6 N.m (53 lb/in)
2 Radio Speaker Amplifier Bolt [ 2x ]
Tighten
2.5 N.m (22 lb/in)
3 Radio Speaker Amplifier

Procedure

  1. Disconnect the electrical connectors.
  2. Perform the necessary programming and setup procedure: Control Module References
