Radio Rear Side Door Speaker Replacement

Courtesy of GENERAL MOTORS COMPANY

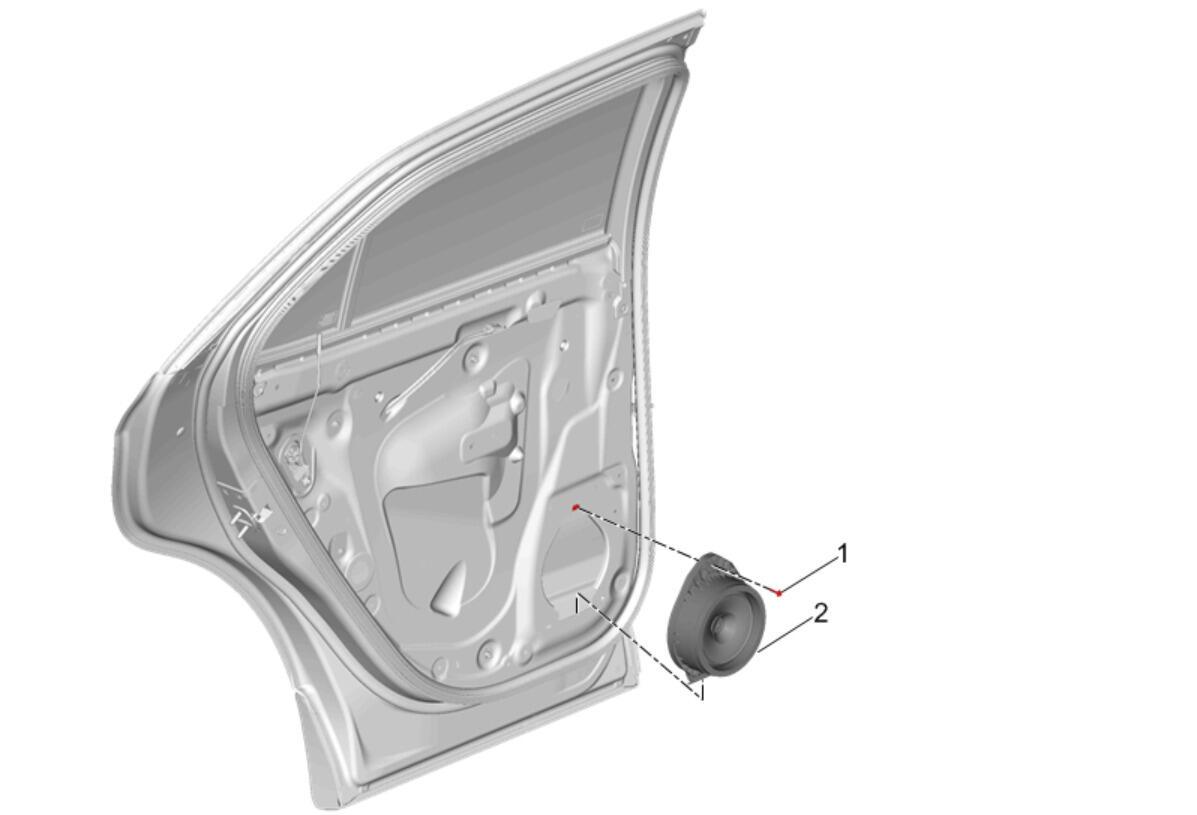

Callout	Component Name
Preliminary Procedure Rear Side Door Trim Replacement (Equinox) , or Rear Side Door Trim Replacement (Terrain)
1	Radio Rear Side Door Speaker Bolt CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb/in)
2	Radio Rear Side Door Speaker Procedure Remove the wiring harness retainer. Disconnect the electrical connector.

Callout

Component Name

Radio Rear Side Door Speaker Bolt

CAUTION:

Tighten
2.5 N.m (22 lb/in)

Radio Rear Side Door Speaker

Procedure
