Radio Front Speaker Replacement (Equinox)

Courtesy of GENERAL MOTORS COMPANY

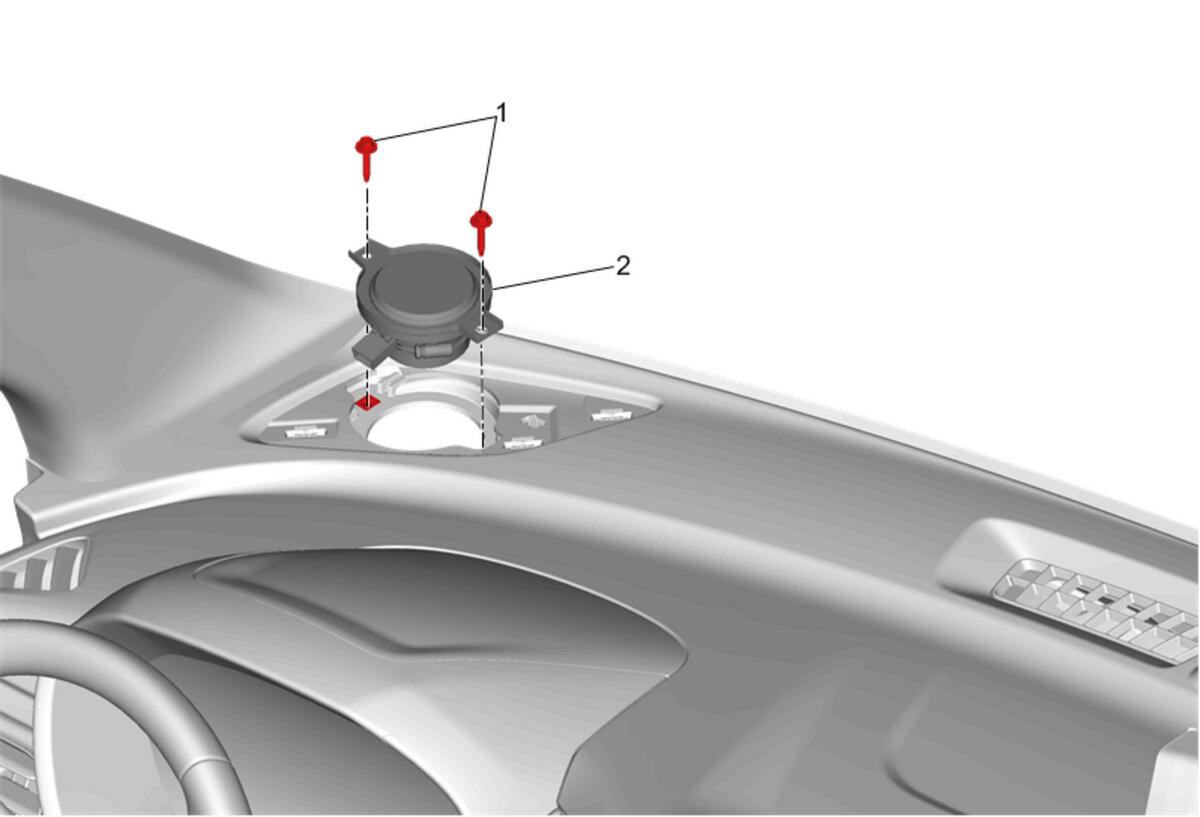

Callout	Component Name
Preliminary Procedure  Radio Front Speaker Grille Replacement
1	Radio Front Speaker Bolt [ 2x ] CAUTION: Fastener Caution Tighten  2.5 N.m (22 lb/in)
2	Radio Front Speaker Procedure  Disconnect the electrical connector.
