Radio Front Side Door Speaker Replacement

Courtesy of GENERAL MOTORS COMPANY

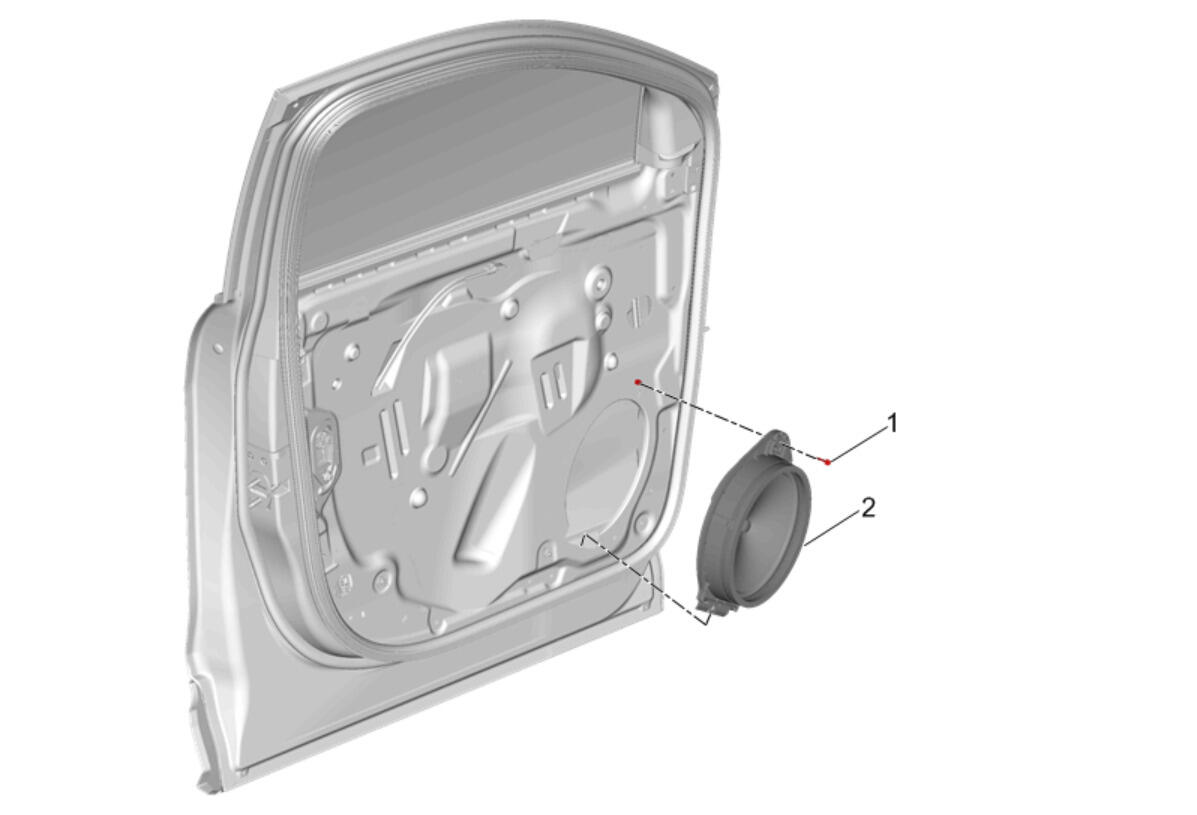

Callout	Component Name
Preliminary Procedure  Front Side Door Trim Replacement (Equinox) , or Front Side Door Trim Replacement (Terrain)
1	Radio Front Side Door Speaker Bolt CAUTION: Fastener Caution Tighten  2.5 N.m (22 lb/in)
2	Radio Front Side Door Speaker Procedure  Disconnect the electrical connector.
