Radio Front Center Speaker Replacement (Terrain)

Courtesy of GENERAL MOTORS COMPANY

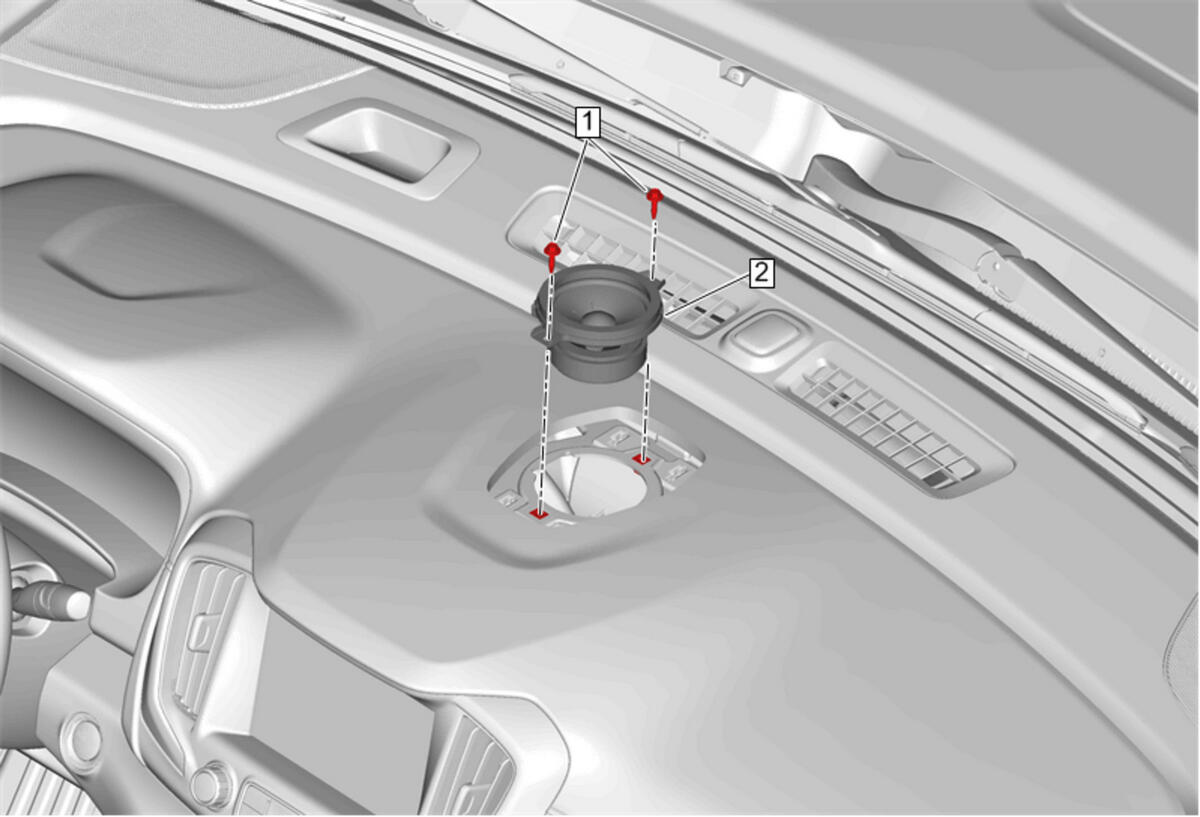

Callout	Component Name
Preliminary Procedure  Radio Front Center Speaker Grille Replacement (Terrain)
1	Radio Front Center Speaker Bolt [ 2x ] CAUTION: Fastener Caution Tighten  2.5 N.m (22 lb/in)
2	Radio Front Center Speaker Procedure  Disconnect the electrical connector.
