Radio Control Switch Replacement - Steering Wheel (Terrain, Right Rear)

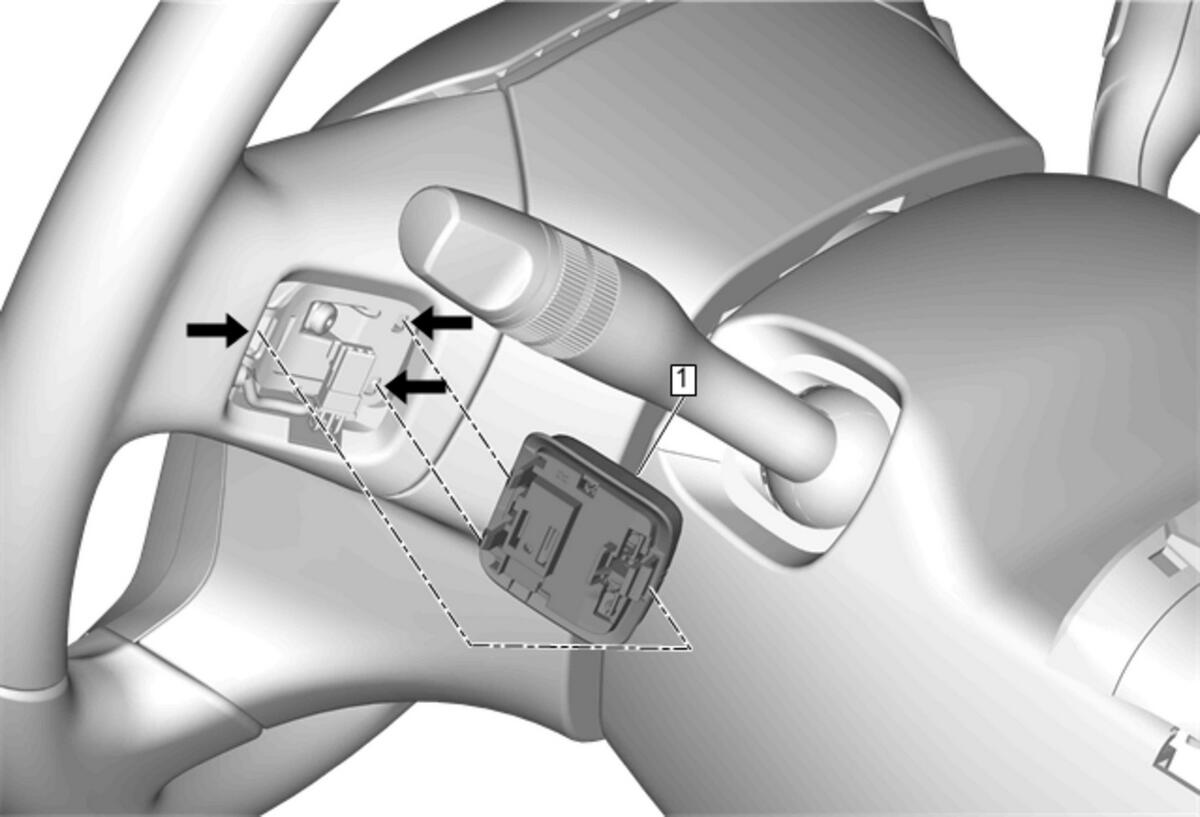

GM4716301Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Radio Control Switch - Steering Wheel

Procedure

  1. Use a flat bladed plastic tool to remove.
  2. Disconnect the electrical connector.
NOTE:

Use a flat bladed plastic tool to release the steering wheel radio control switch retaining tabs from the bracket attached to the steering wheel.
