Installation Procedure

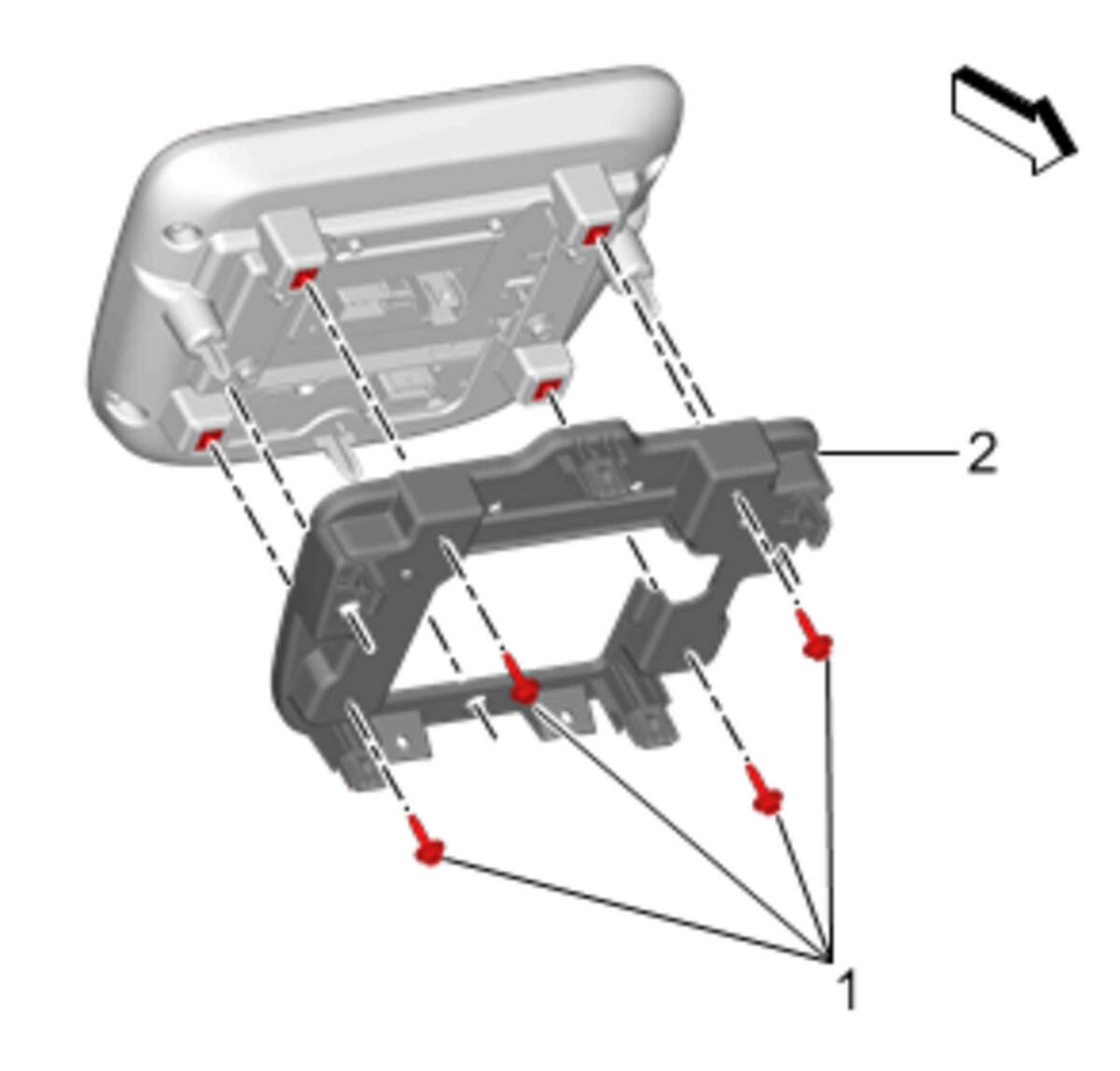

  1. GM4565439Courtesy of GENERAL MOTORS COMPANY

    Radio Control Bracket (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Radio Control Bracket Bolt (1) - Install and tighten [ 4x ] 2.5 N.m (22 lb/in)

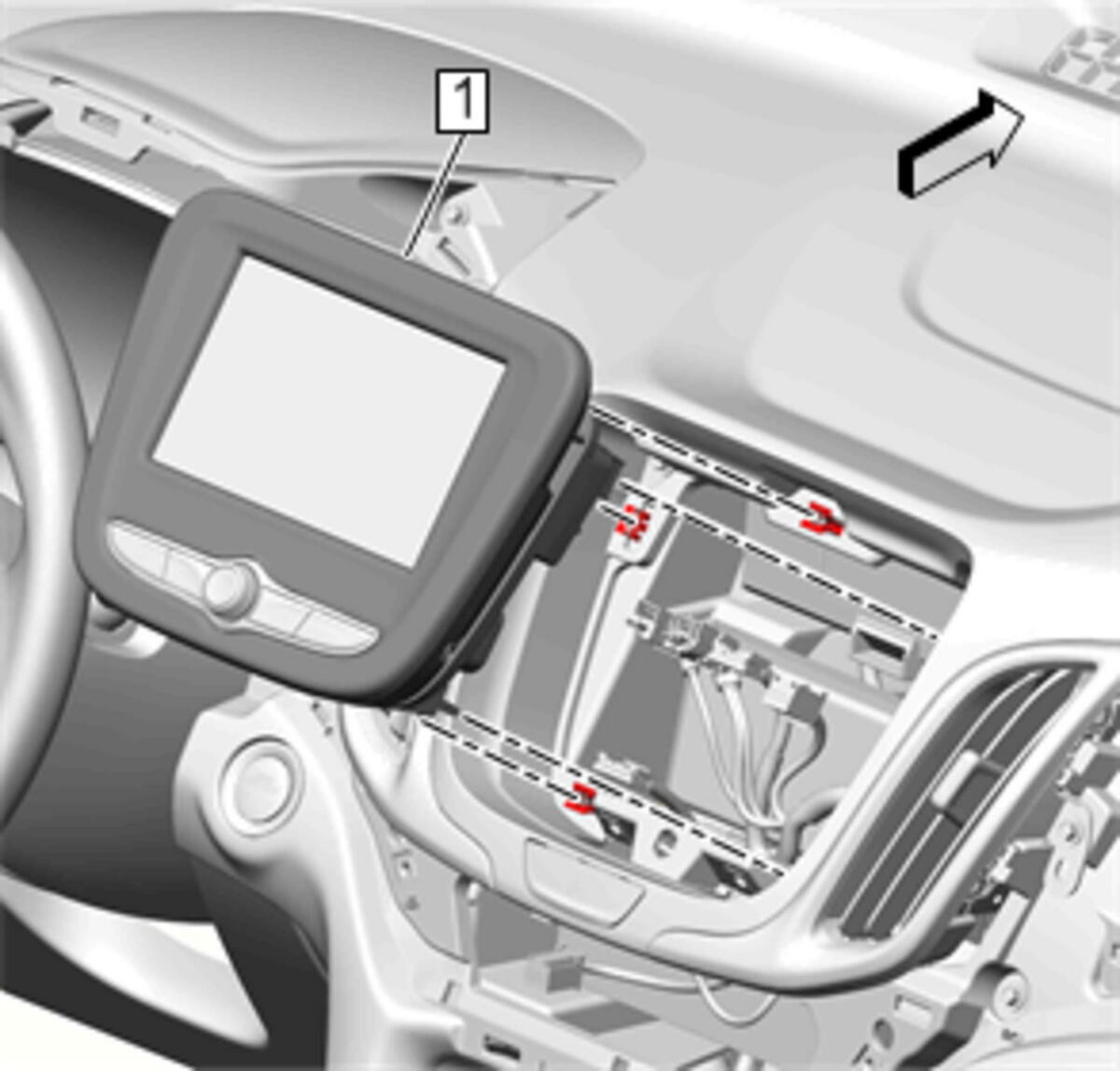

  3. GM4565448Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  4. Radio Control Assembly (1) - Install

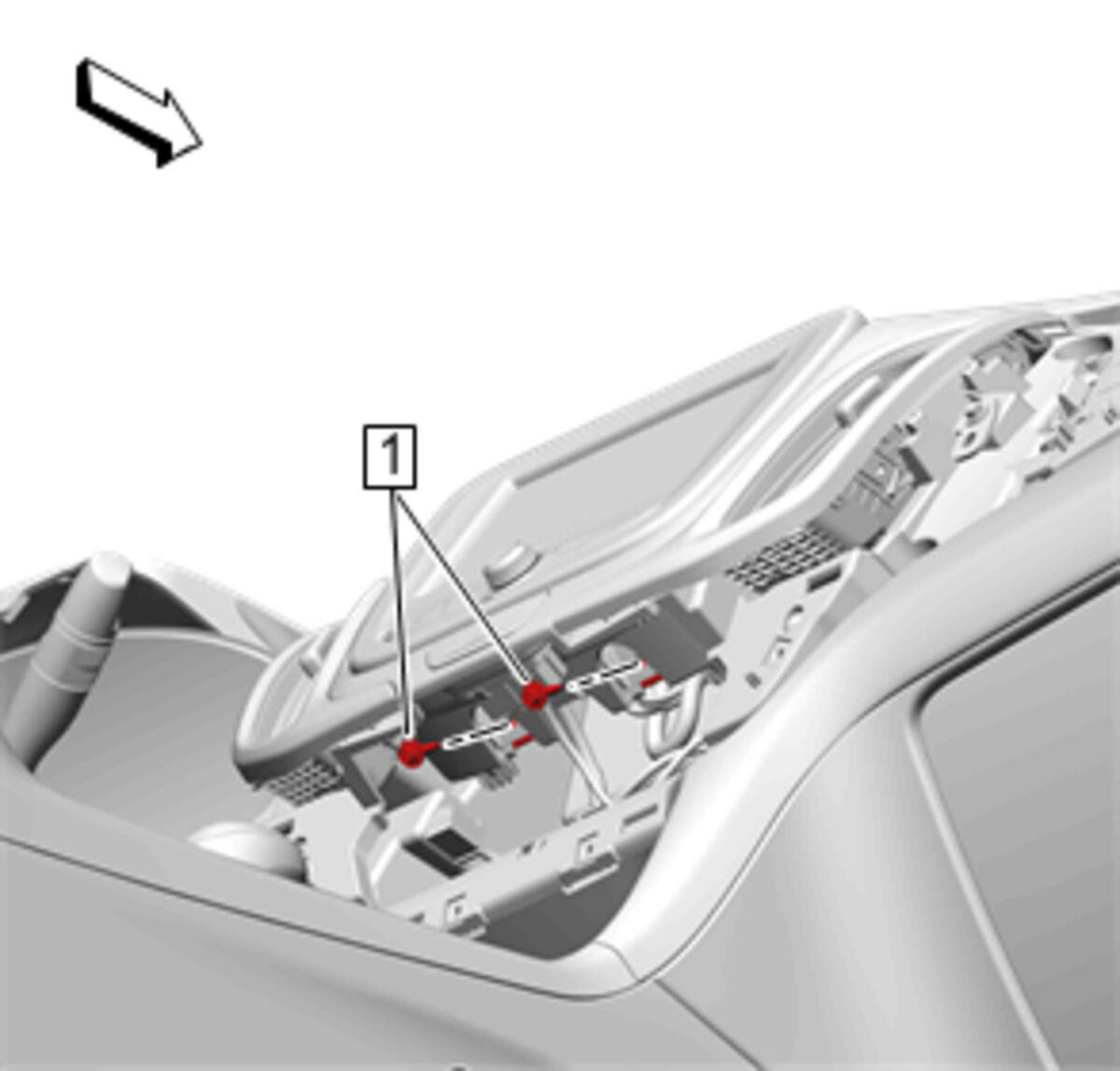

  5. GM4565449Courtesy of GENERAL MOTORS COMPANY

    Radio Control Bracket Bolt (1) - Install and tighten [ 2x ] 2.5 N.m (22 lb/in)

  6. Heater and Air Conditioning User Interface Control - Install - Heater and Air Conditioning User Interface Control Replacement (Equinox)
