Installation Procedure

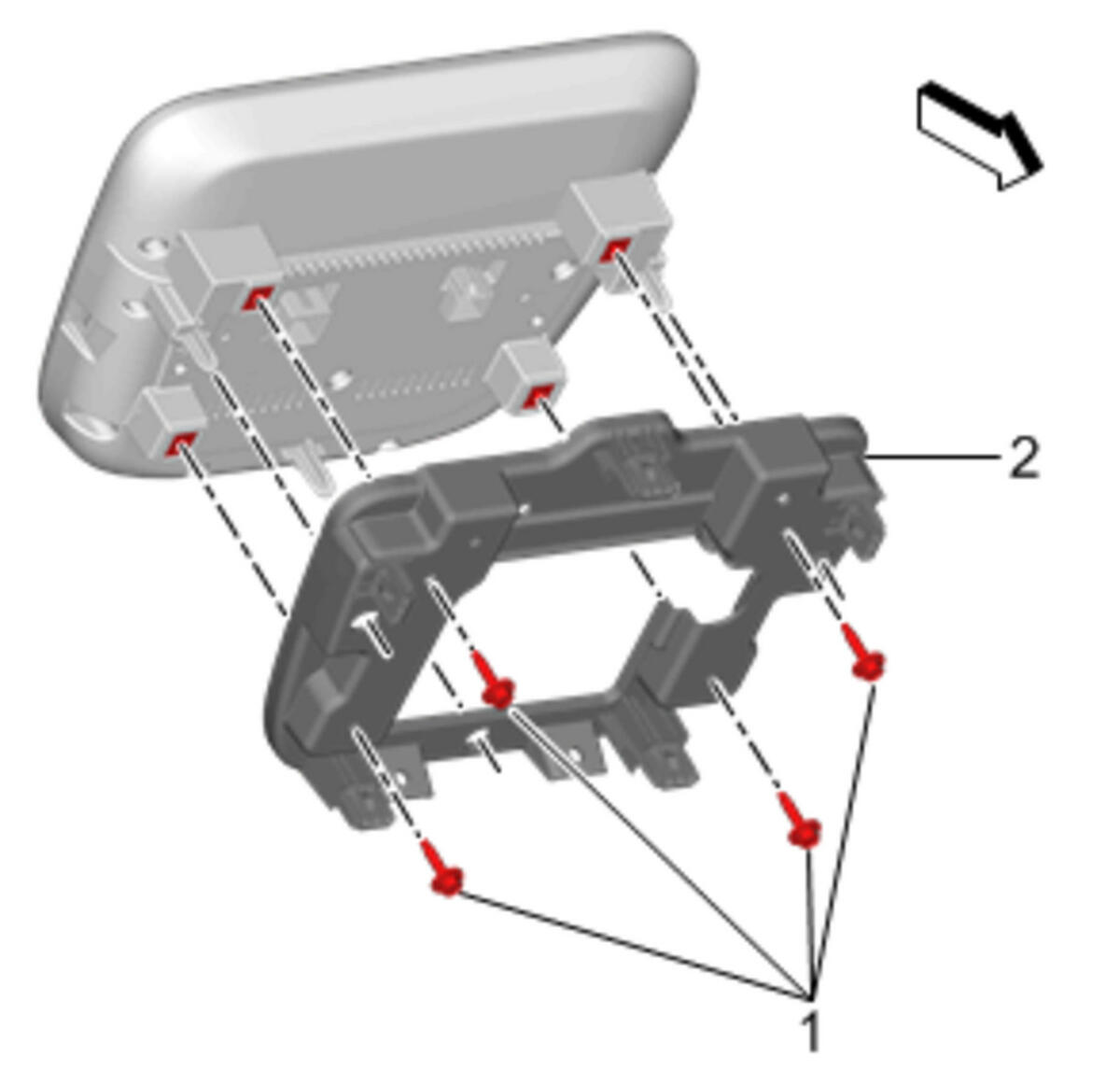

  1. GM4566305Courtesy of GENERAL MOTORS COMPANY

    Radio Control Bracket (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Radio Control Bracket Bolt (1) - Install and tighten [ 4x ] 2.5 N.m (22 lb/in)
  3. GM4566303Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  4. Radio Control Assembly (1) - Install
  5. GM4566302Courtesy of GENERAL MOTORS COMPANY

    Radio Control Bracket Bolt (1) - Install and tighten [ 2x ] 2.5 N.m (22 lb/in)

  6. Heater and Air Conditioning User Interface Control - Install - Heater and Air Conditioning User Interface Control Replacement (Equinox)
