Removal Procedure

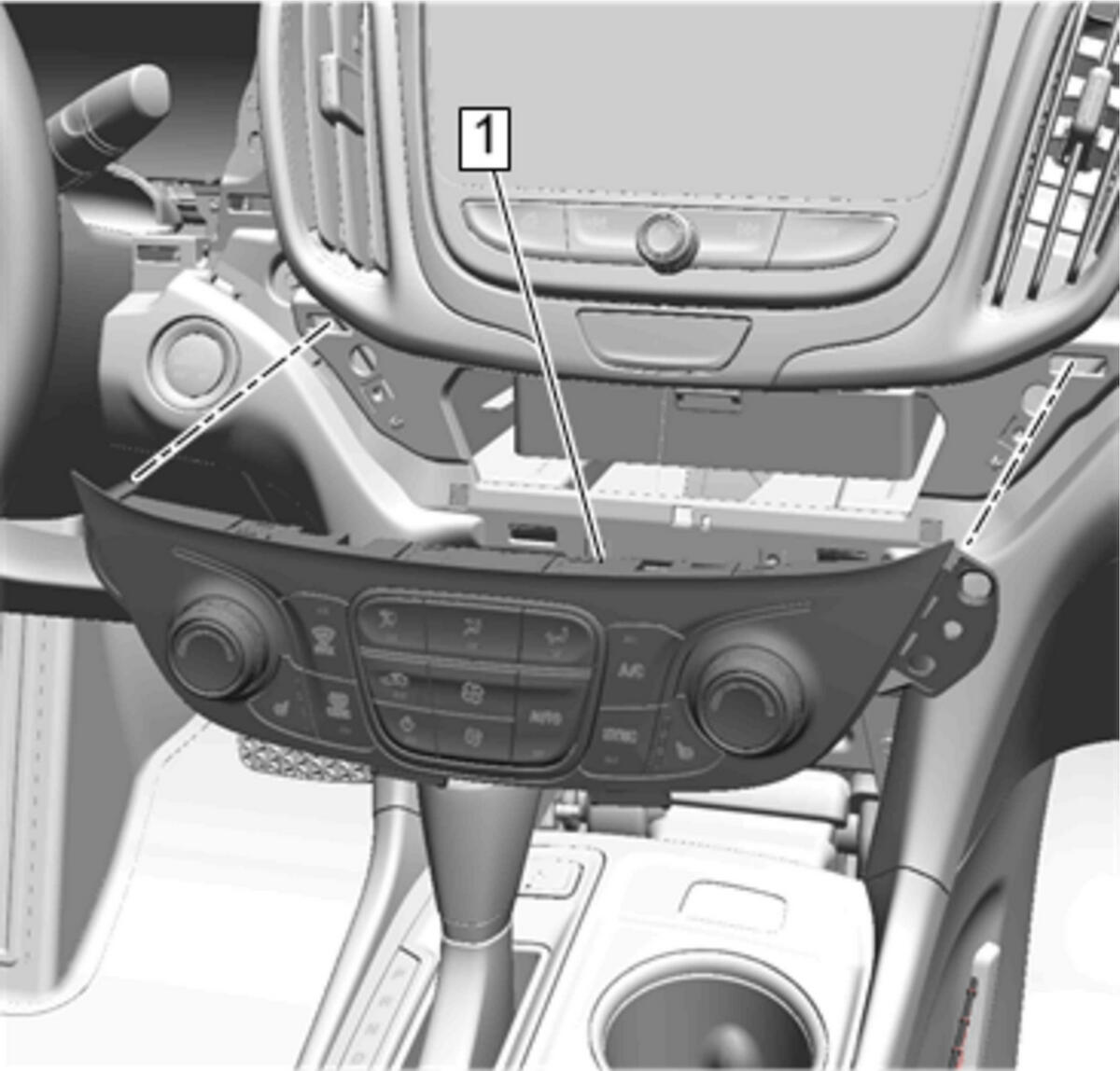

  1. GM4588499Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning User Interface Control (1) - Remove - Heater and Air Conditioning User Interface Control Replacement (Equinox)

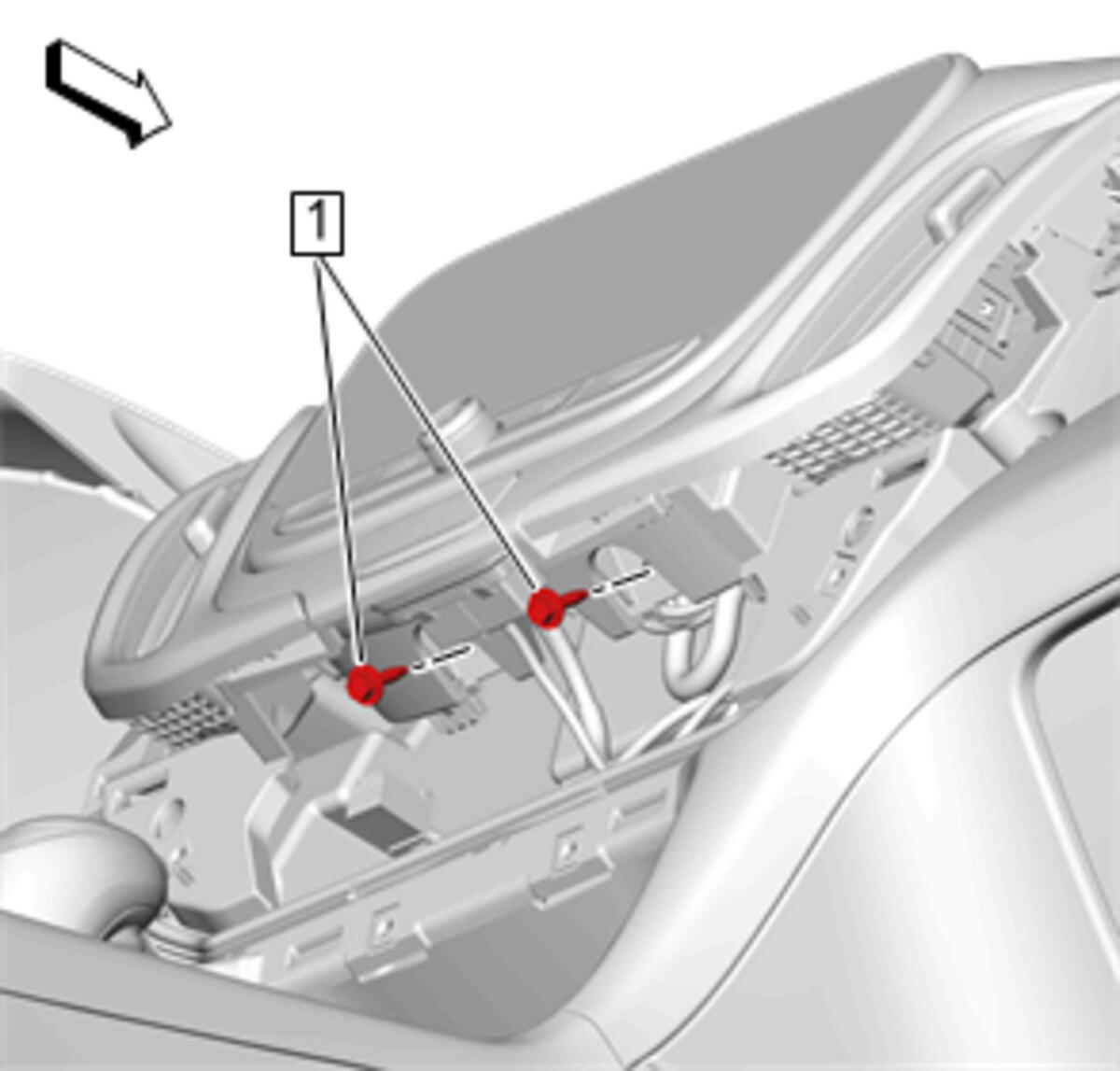

  2. GM4566302Courtesy of GENERAL MOTORS COMPANY

    Radio Control Bracket Bolt (1) - Remove [ 2x ]

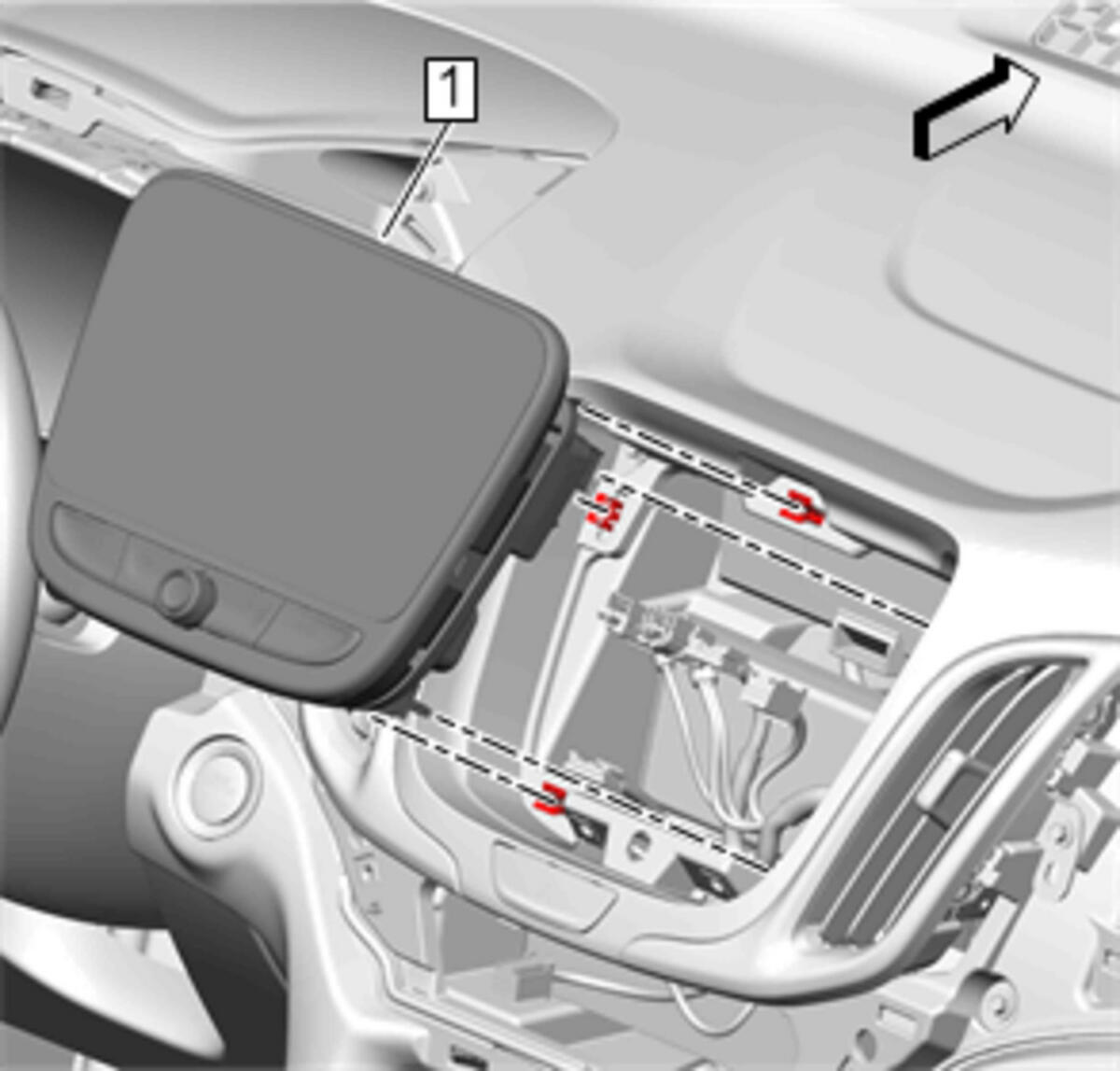

  3. GM4566303Courtesy of GENERAL MOTORS COMPANY

    Radio Control Assembly (1) - Remove

  4. Use a plastic trim tool if necessary.
  5. Disconnect all electrical connectors.

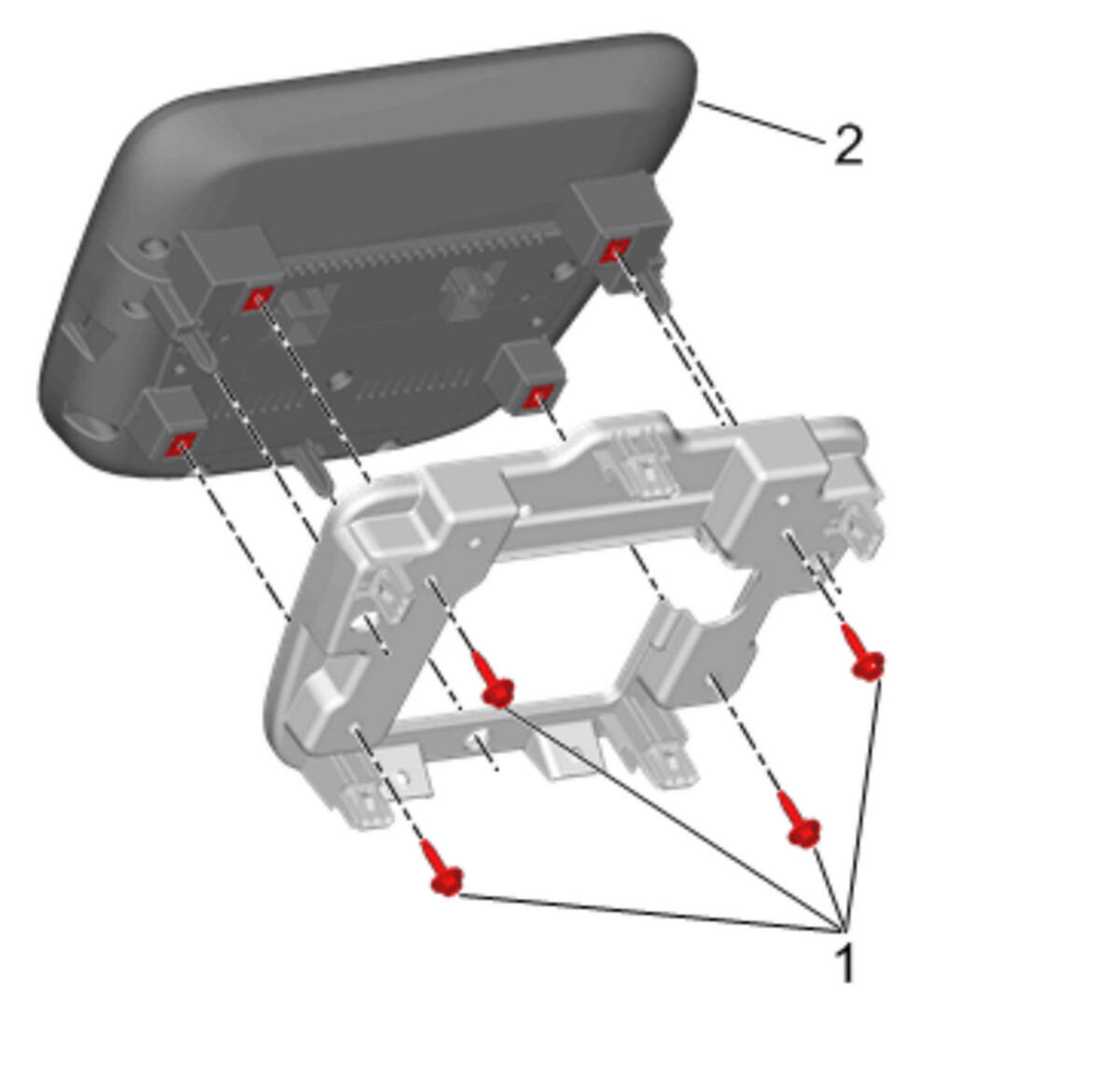

  6. GM4567319Courtesy of GENERAL MOTORS COMPANY

    Radio Control Bracket Bolt (1) - Remove [ 4x ]

  7. Radio Control Assembly (2) - Remove
  8. Transfer components as necessary.
