Radio Bracket Replacement (Equinox)

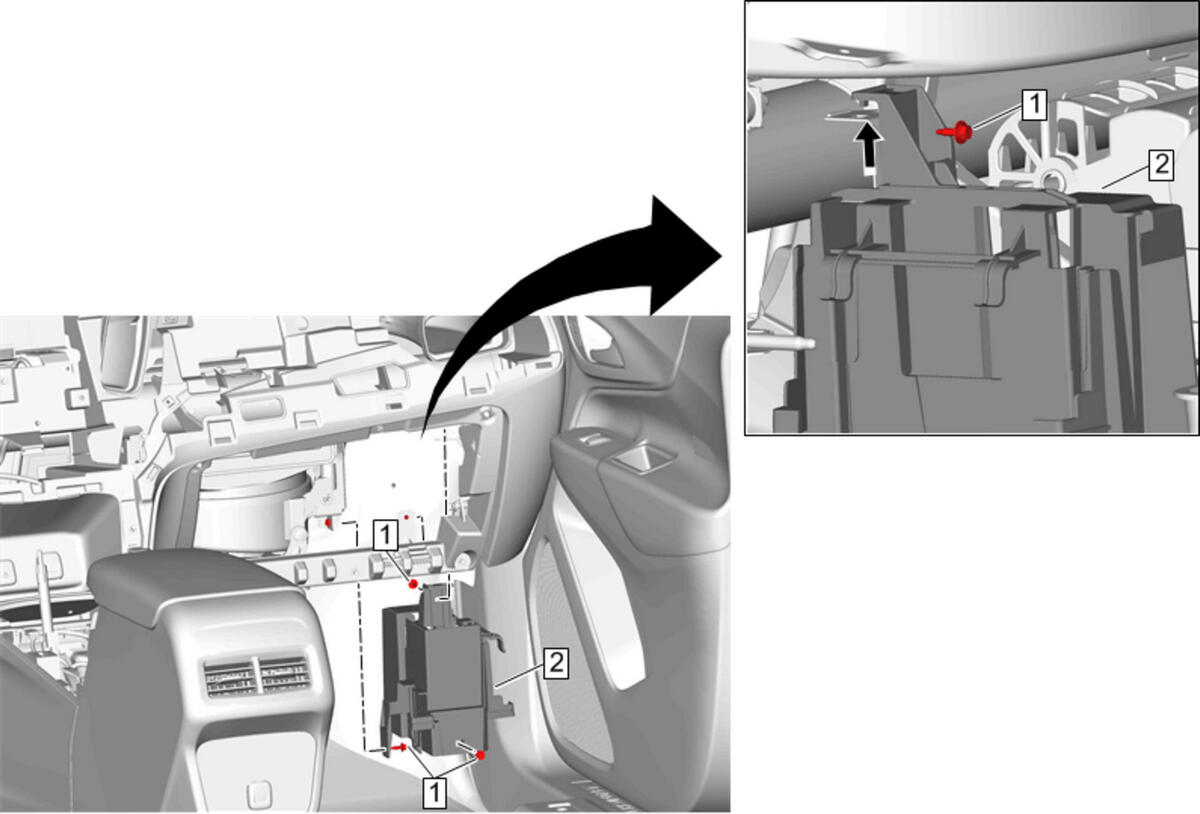

GM4598967

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Instrument Panel Upper Trim Panel Replacement (Equinox)

1

Radio Bracket Bolt [ 3x ]

CAUTION:

Fastener Caution

Tighten
2.5 N.m (22 lb/in)

2

Radio Bracket

Procedure

Disconnect all electrical connectors.
Transfer components as necessary.
The top of the bracket has 2 locking tabs on an arm that goes on the instrument panel tie bar bracket, lift the arm up and out of the locking holes to release the bracket.
