Audio Player and USB Receptacle Replacement (Terrain)
Courtesy of GENERAL MOTORS COMPANY

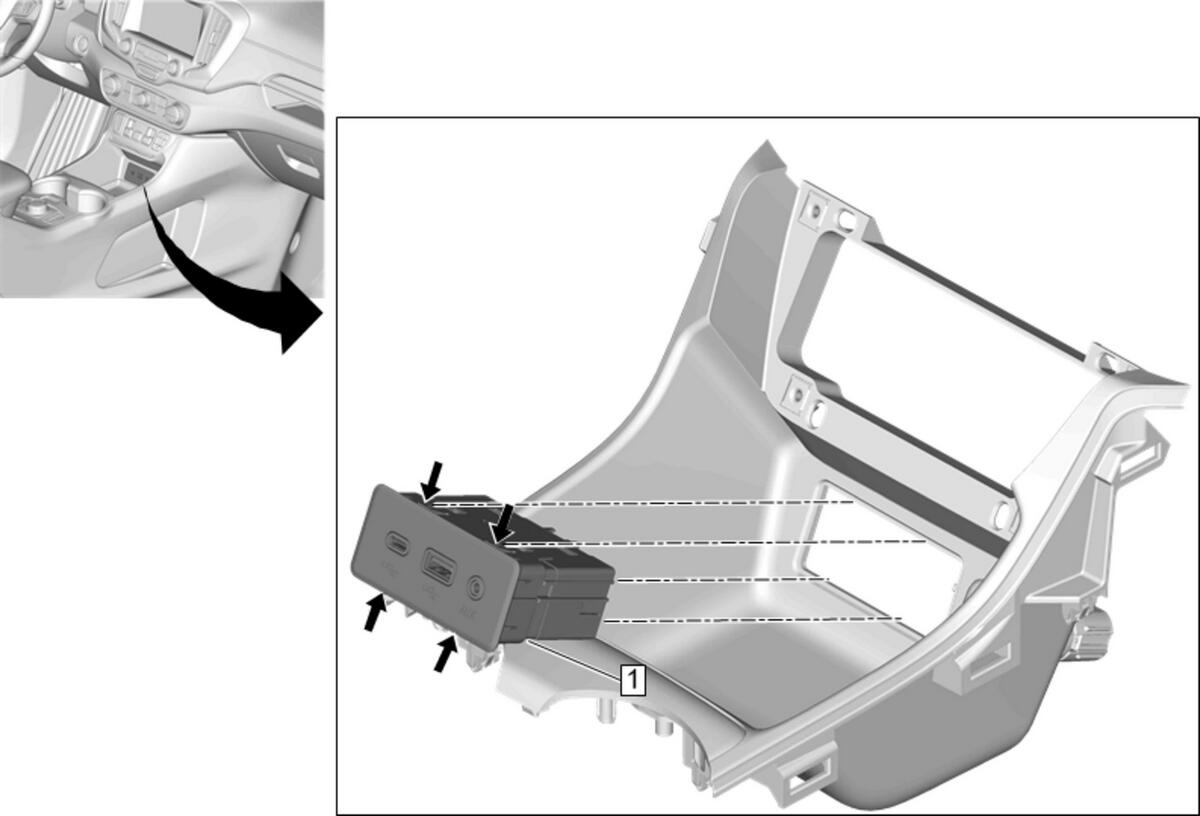

Callout
Component Name
1
Audio Disc Player and USB Receptacle
Procedure
Using a suitable plastic trim tool, release the retaining tabs to remove the receptacle.
