Active Noise Cancellation Microphone Replacement

Courtesy of GENERAL MOTORS COMPANY

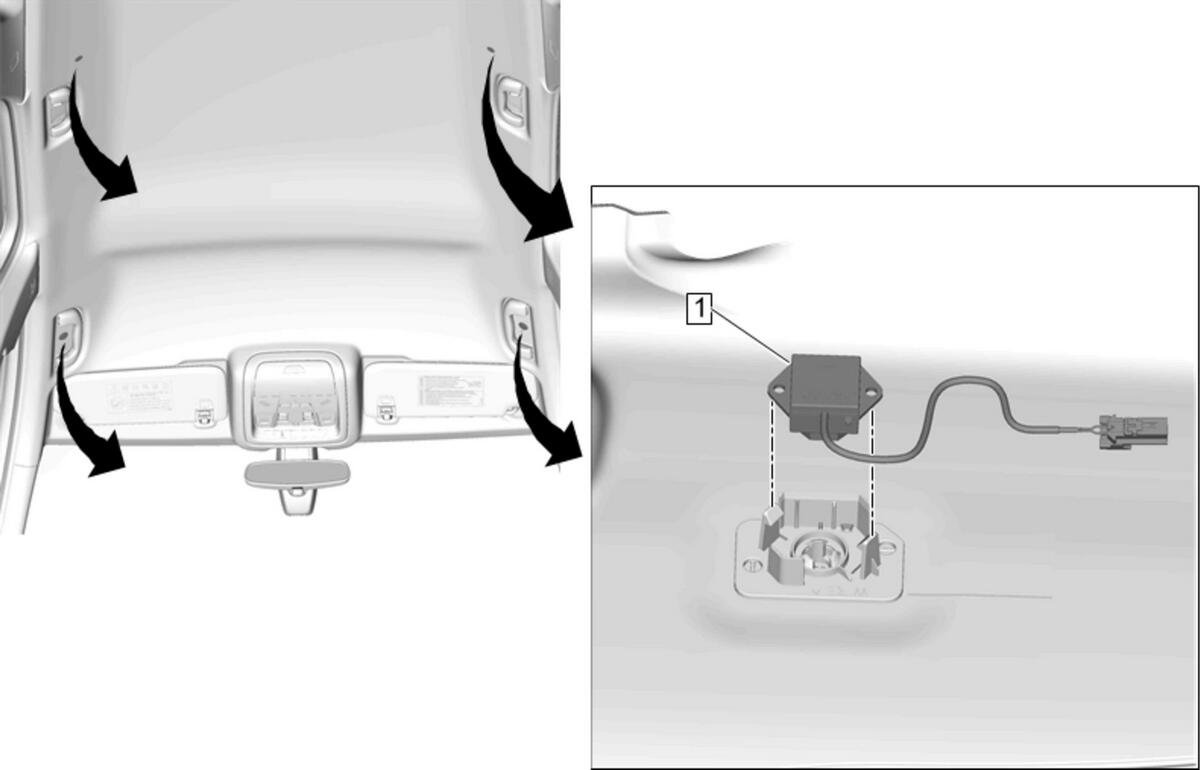

Callout	Component Name
Preliminary Procedure It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed. Headlining Trim Panel Replacement
1	Active Noise Cancellation Microphone Procedure Disconnect the electrical connector. Release the retaining tabs. Use a suitable tool.

Callout

Component Name

Preliminary Procedure
It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed. Headlining Trim Panel Replacement

Active Noise Cancellation Microphone

Procedure

Disconnect the electrical connector.
Release the retaining tabs.
Use a suitable tool.
