Rear Vision Camera Description and Operation (IO5/IO6 with MAH/MBC)
>>

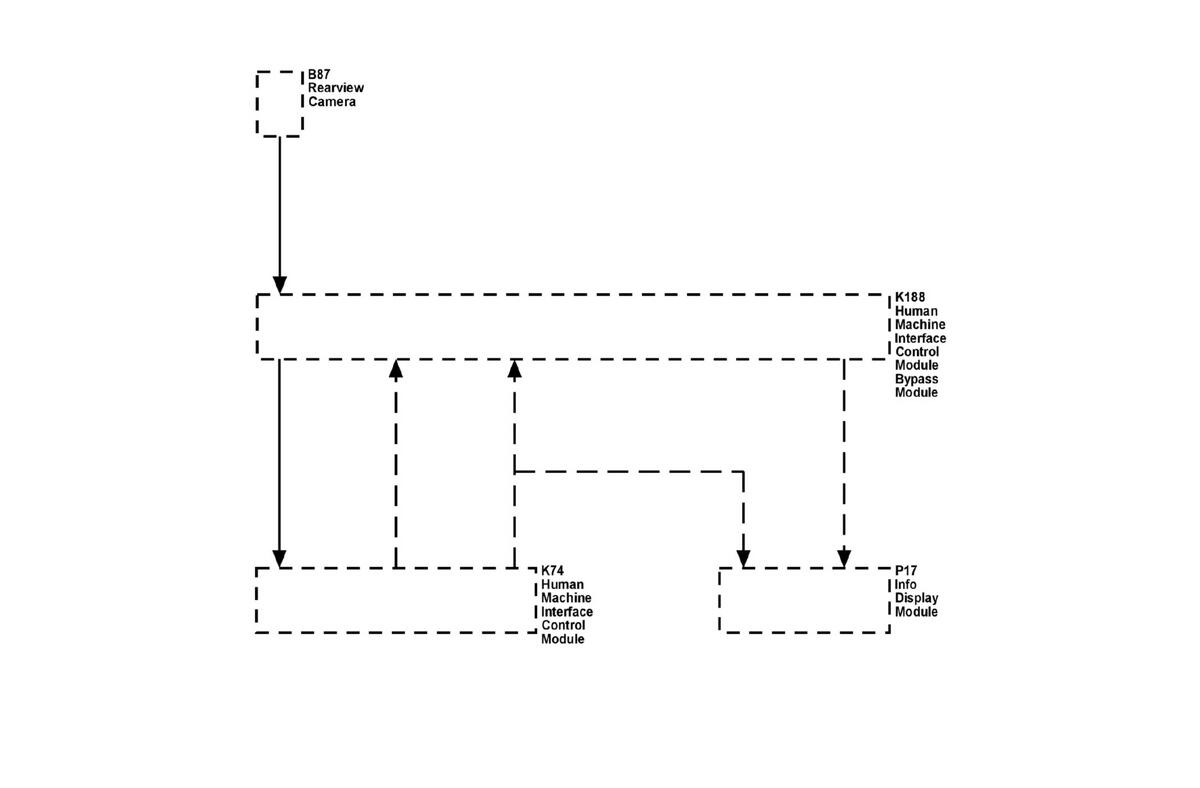

Rear Camera with VBM block diagram
Rear Camera with VBM block diagram
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
DJ
Serial Data - Local Interconnect Network
DM
Serial Data - LVDS
DM
Serial Data - LVDS
K188
K188 Human Machine Interface Control Module Bypass Module
B87
B87 Rearview Camera
K74
K74 Human Machine Interface Control Module
P17
P17 Info Display Module
