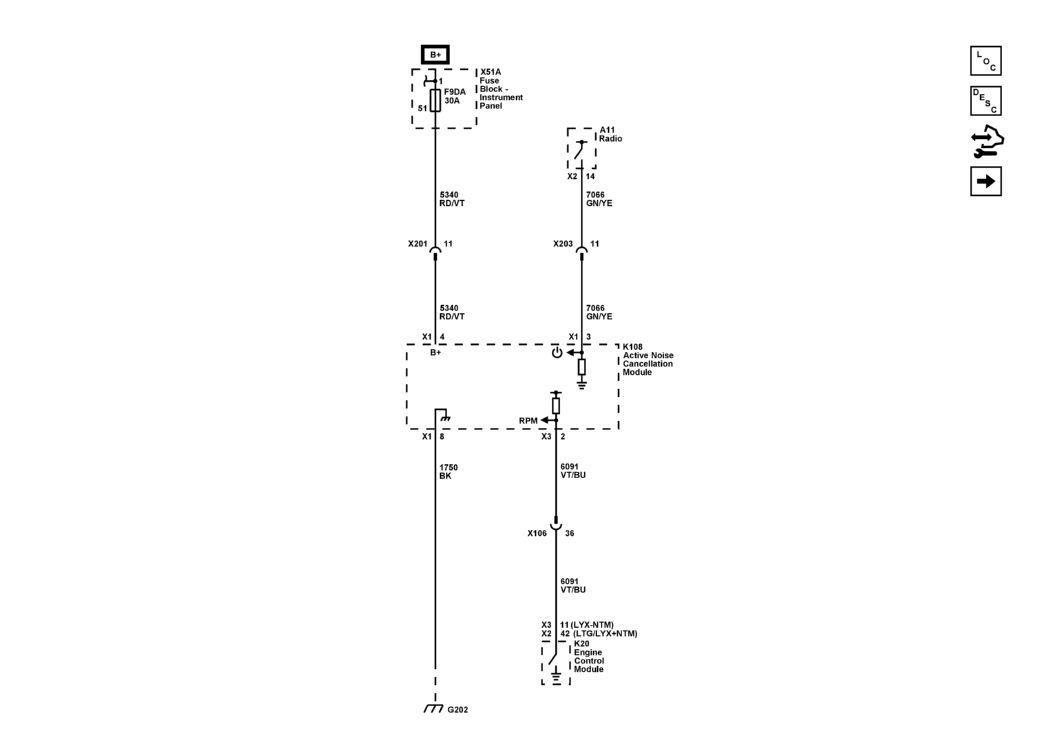

Active Noise Cancellation Module Power, Ground and Serial Data (NKC with UZ6 without IOR)

GM5491131Courtesy of GENERAL MOTORS COMPANY
