Home >> GMC >> 2021 >> Terrain SLT, 4WD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Accessories Control Systems >> Active Noise Cancellation System >> Schematic Wiring Diagrams >> Active Noise Cancellation Wiring Schematics >> Active Noise Cancellation Microphones (NKC and UQA with (IOS/IOU)

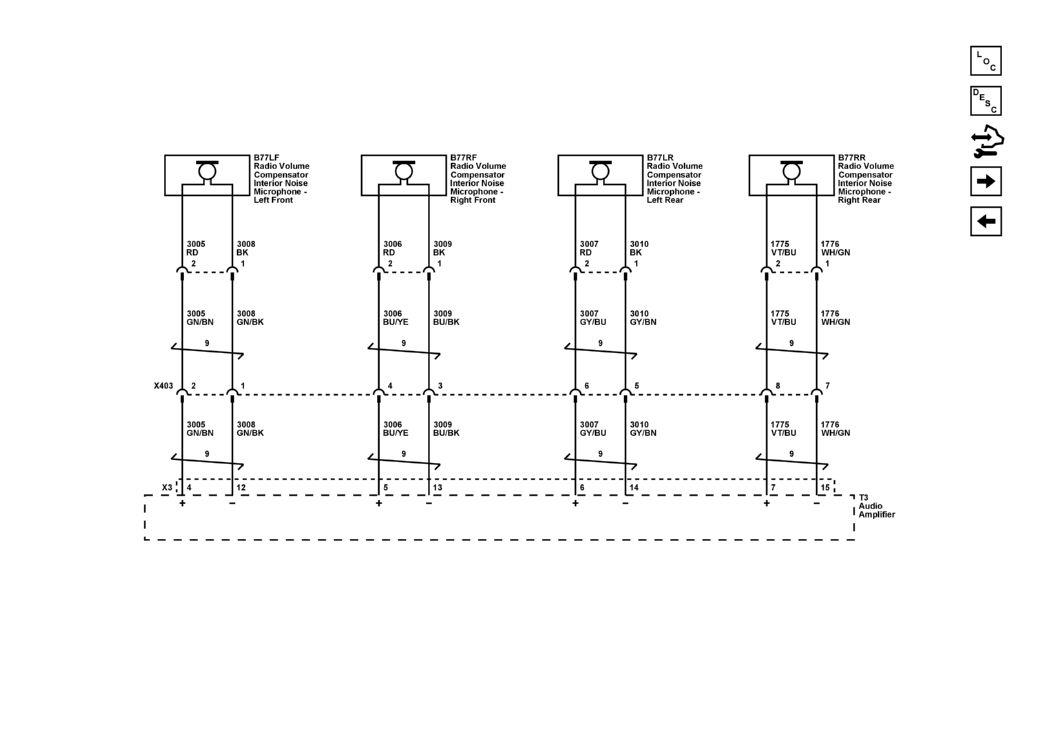

Active Noise Cancellation Microphones (NKC and UQA with (IOS/IOU)

GM5491133

Courtesy of GENERAL MOTORS COMPANY
