Heated Steering Wheel Module Replacement (Terrain)

WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Steering Wheel Spoke Cover Replacement (Equinox) , or Steering Wheel Spoke Cover Replacement (Terrain)

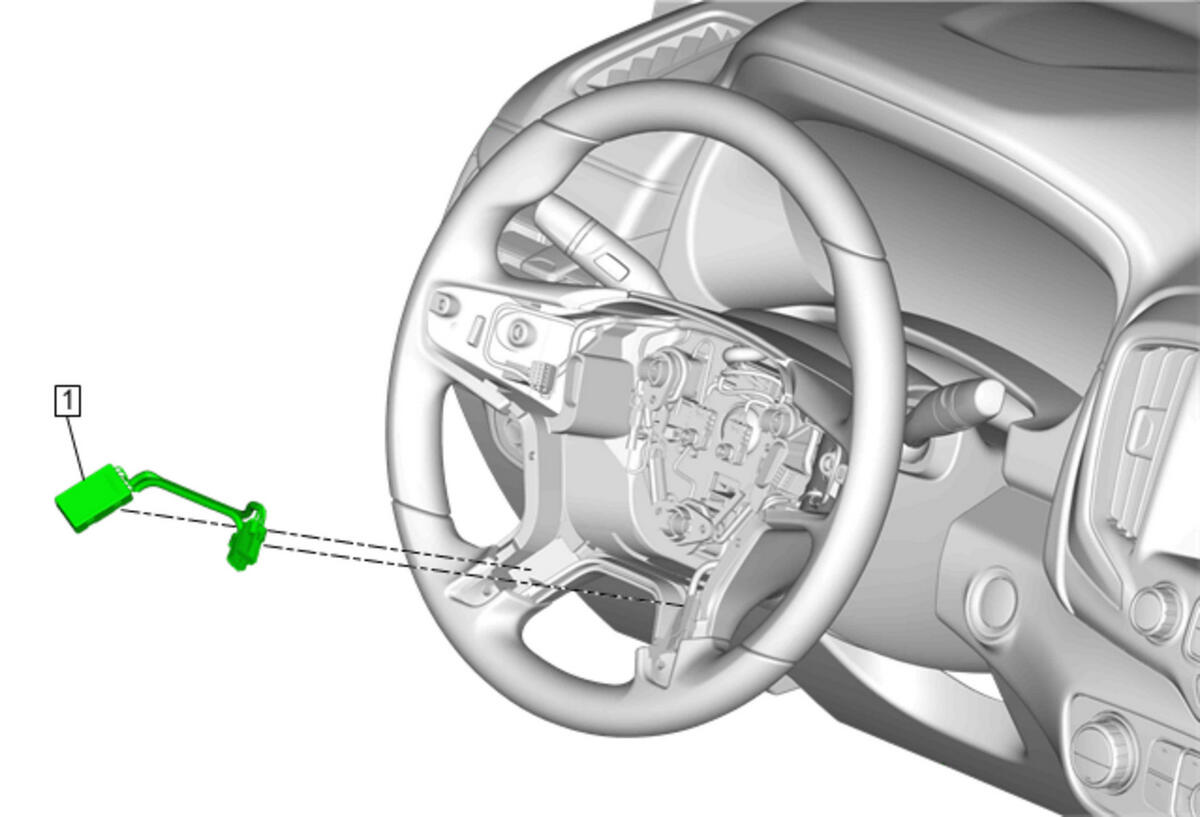

1	Steering Wheel Heat Control Module Procedure Disconnect the electrical connectors. Remove the steering wheel heat control module wiring harness from the steering wheel. Remove the steering wheel heat control module from the steering wheel.

Callout

Component Name

Preliminary Procedure
Steering Wheel Spoke Cover Replacement (Equinox) , or Steering Wheel Spoke Cover Replacement (Terrain)

Steering Wheel Heat Control Module

Procedure

Disconnect the electrical connectors.
Remove the steering wheel heat control module wiring harness from the steering wheel.
Remove the steering wheel heat control module from the steering wheel.
