Transmission Control Replacement

WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

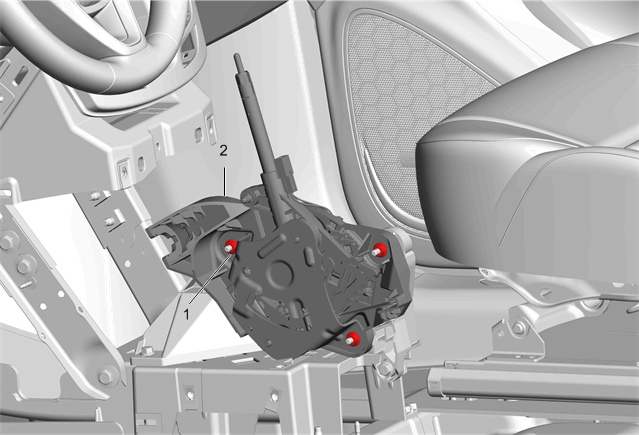

Callout	Component Name
Preliminary Procedures Remove the front floor console. Front Floor Lower Console Replacement (Equinox) Disconnect the shift control cable from the transmission control. Range Selector Lever Cable Replacement Disconnect the electrical connector.
1	Transmission Control Fastener (Qty : 3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Transmission Control

Callout

Component Name

Preliminary Procedures

Remove the front floor console. Front Floor Lower Console Replacement (Equinox)
Disconnect the shift control cable from the transmission control. Range Selector Lever Cable Replacement
Disconnect the electrical connector.

Transmission Control Fastener (Qty : 3)

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Transmission Control
