Removal Procedure

WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
  1. Transmission control - Remove - Transmission Control Replacement

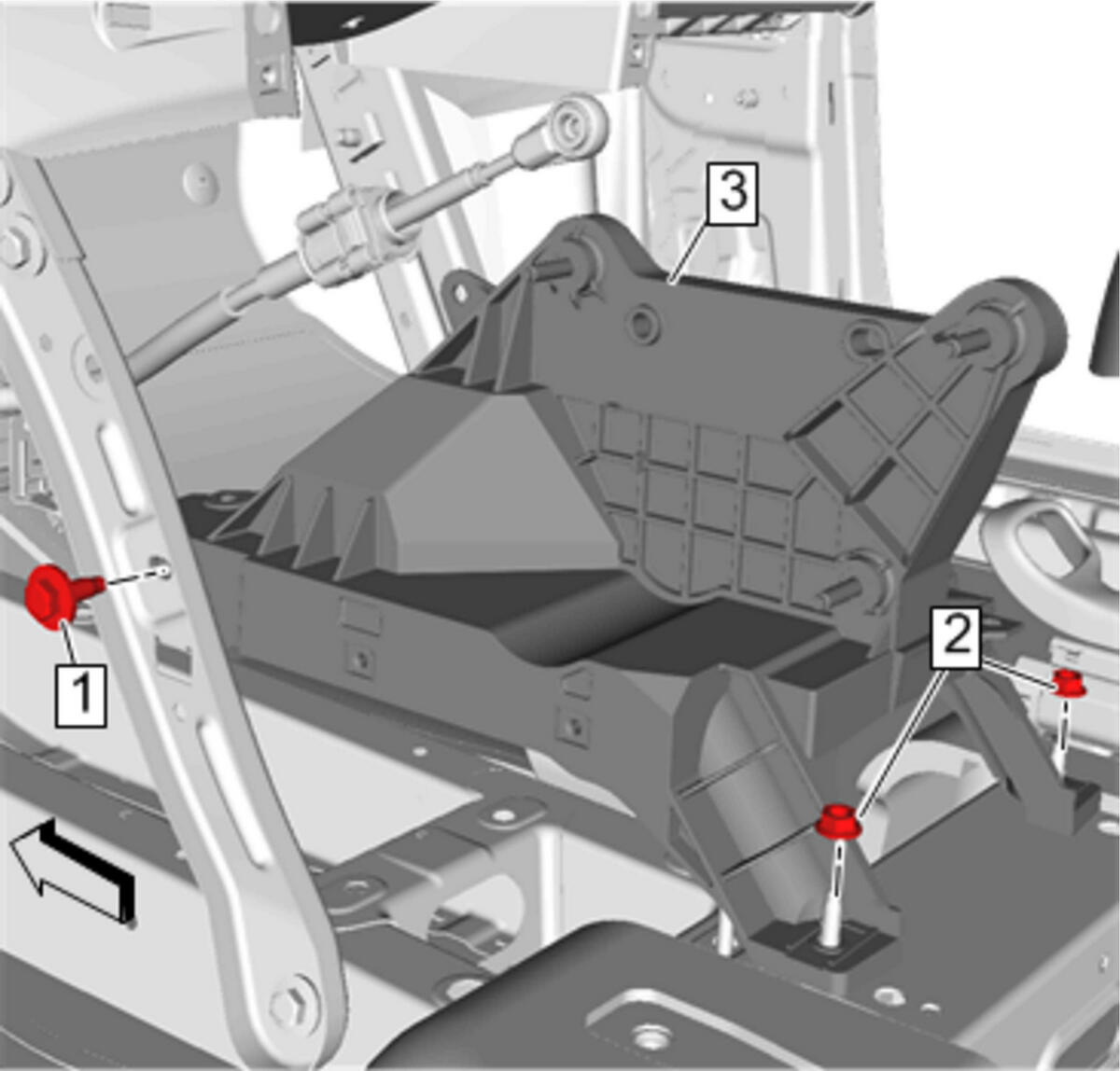

  2. GM4573590Courtesy of GENERAL MOTORS COMPANY

    Remove the left instrument panel center support bracket bolt (1).

  3. Remove the automatic transmission control bracket nuts (2) from the automatic transmission control bracket (3).

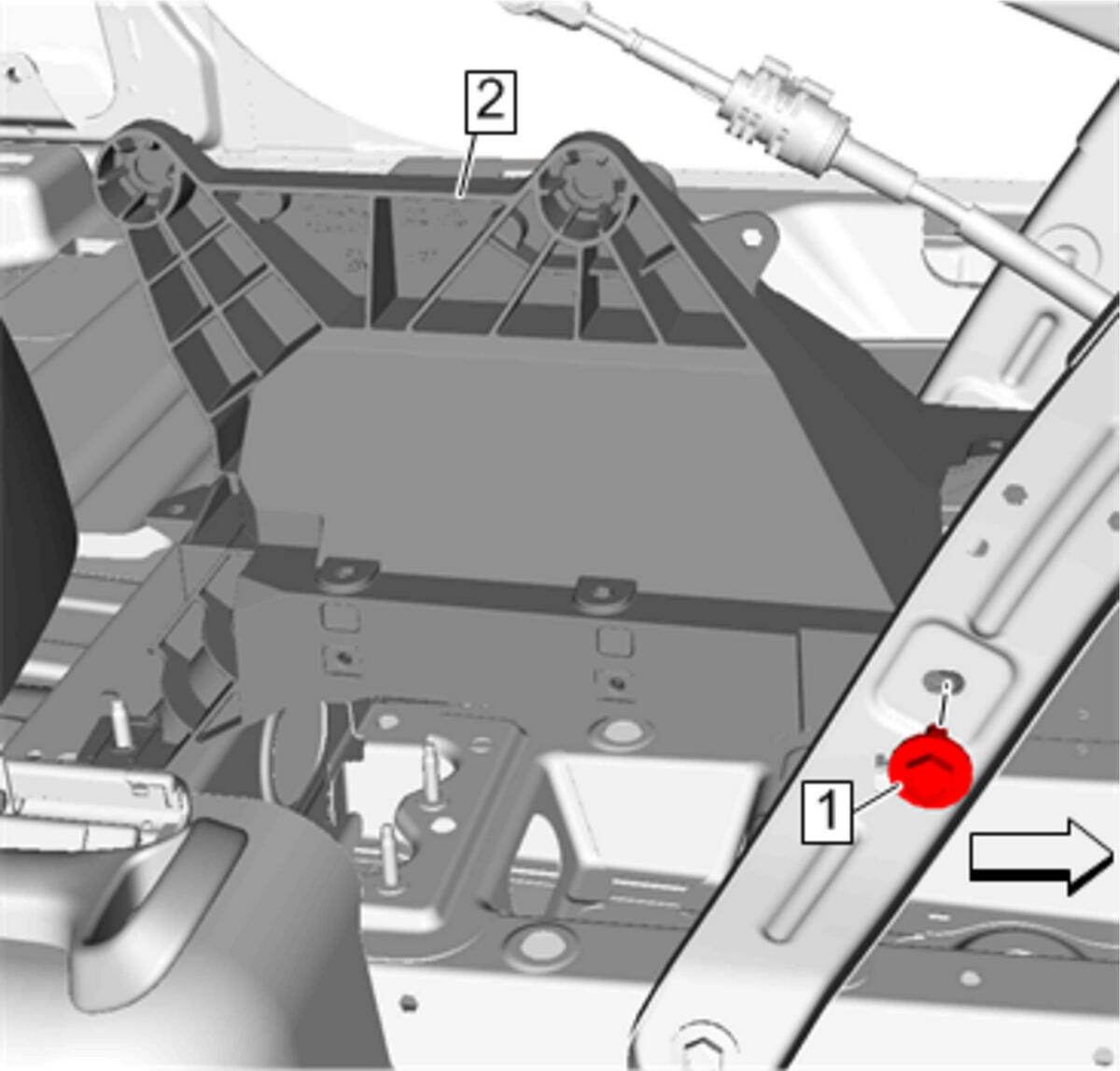

  4. GM4573596Courtesy of GENERAL MOTORS COMPANY

    Remove the right instrument panel center support bracket bolt (1).

  5. Remove the automatic transmission control bracket (2).
