Automatic Transmission Output Speed Sensor Replacement
WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

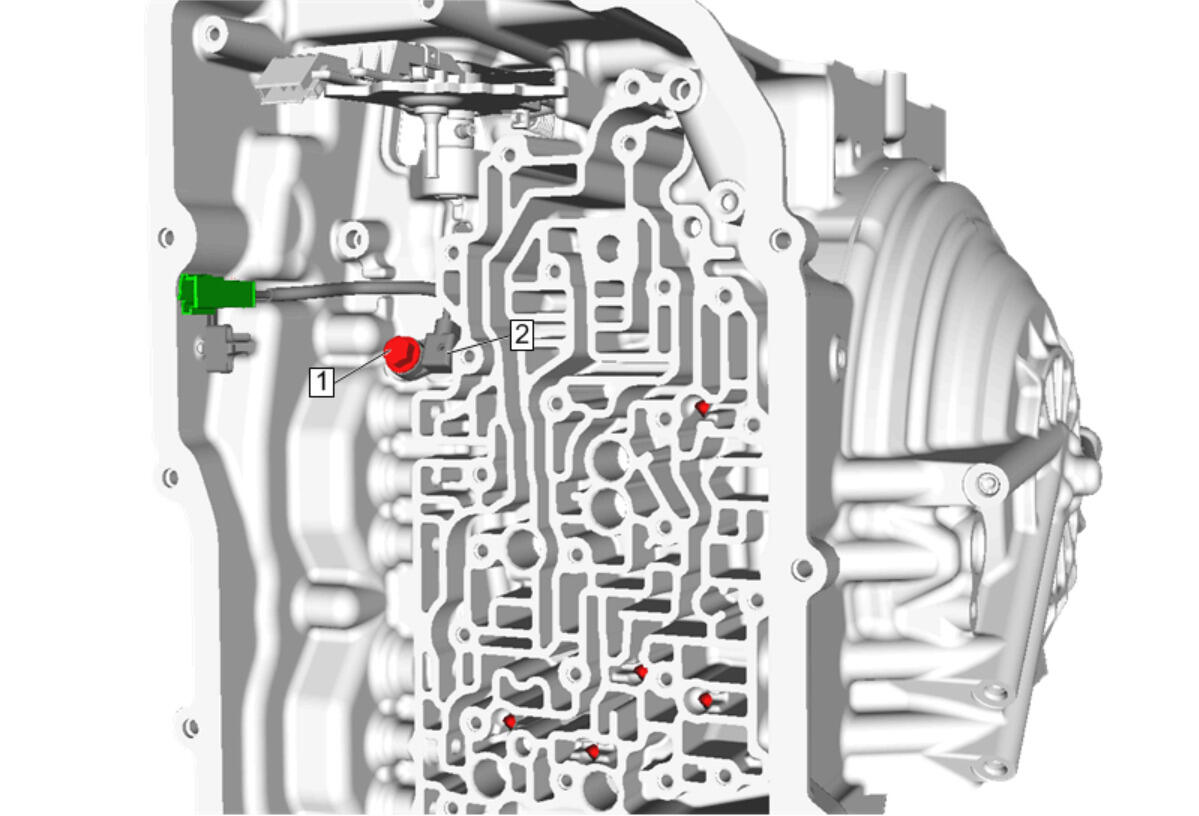

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the control valve body. Control Valve Body Replacement |
|
| 1 | Output Speed Sensor Bolt
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Output Speed Sensor Procedure Perform the transmission service fast learn procedure. Transmission Service Fast Learn Procedure . |
