Underbody Rear Air Deflector Replacement (AWD)
WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

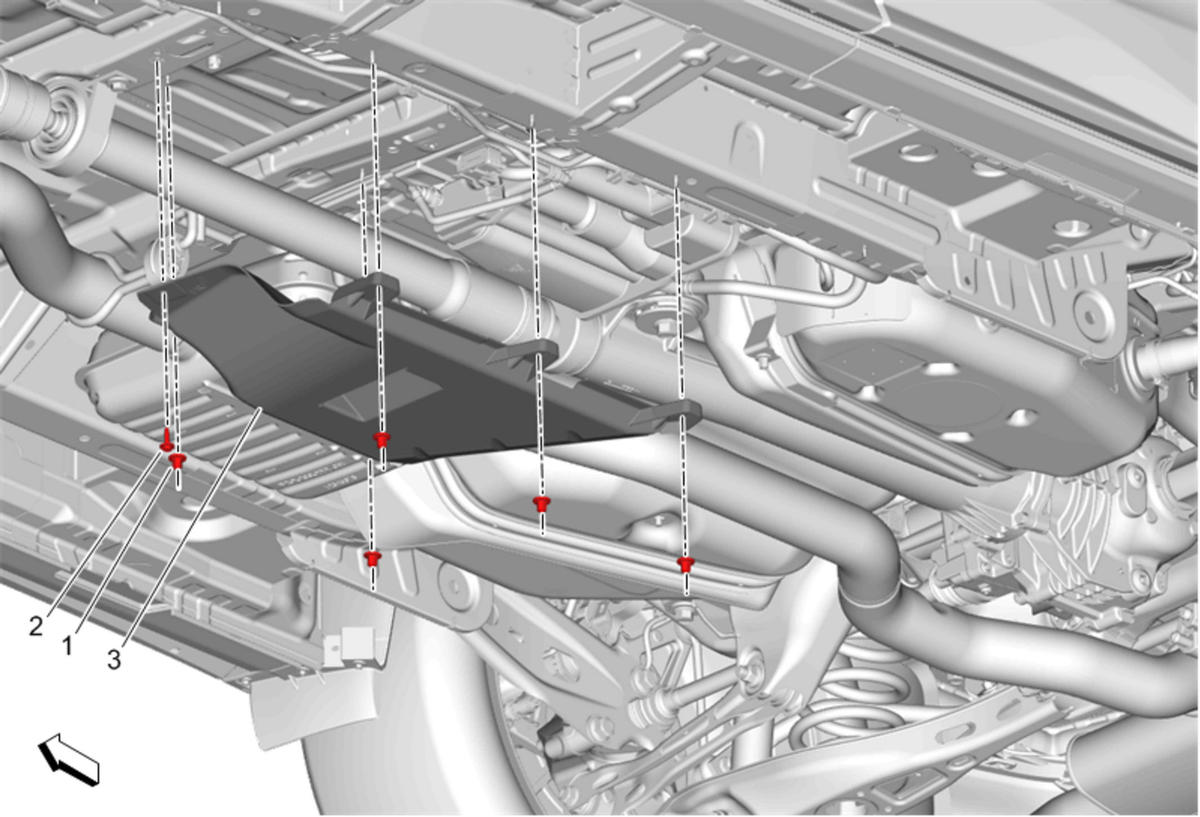

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle |
|
| 1 | Underbody Rear Air Deflector Nut[5x]
CAUTION:
Refer to Fastener Caution . Tighten 3 N.m (27 lb in) |
| 2 | Underbody Rear Air Deflector Bolt Tighten 5 N.m (44 lb in) |
| 3 | Underbody Rear Air Deflector Procedure Remove the support and lower the vehicle. Lifting and Jacking the Vehicle |
