Front Side Door Sill Garnish Molding Replacement (Equinox)
WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

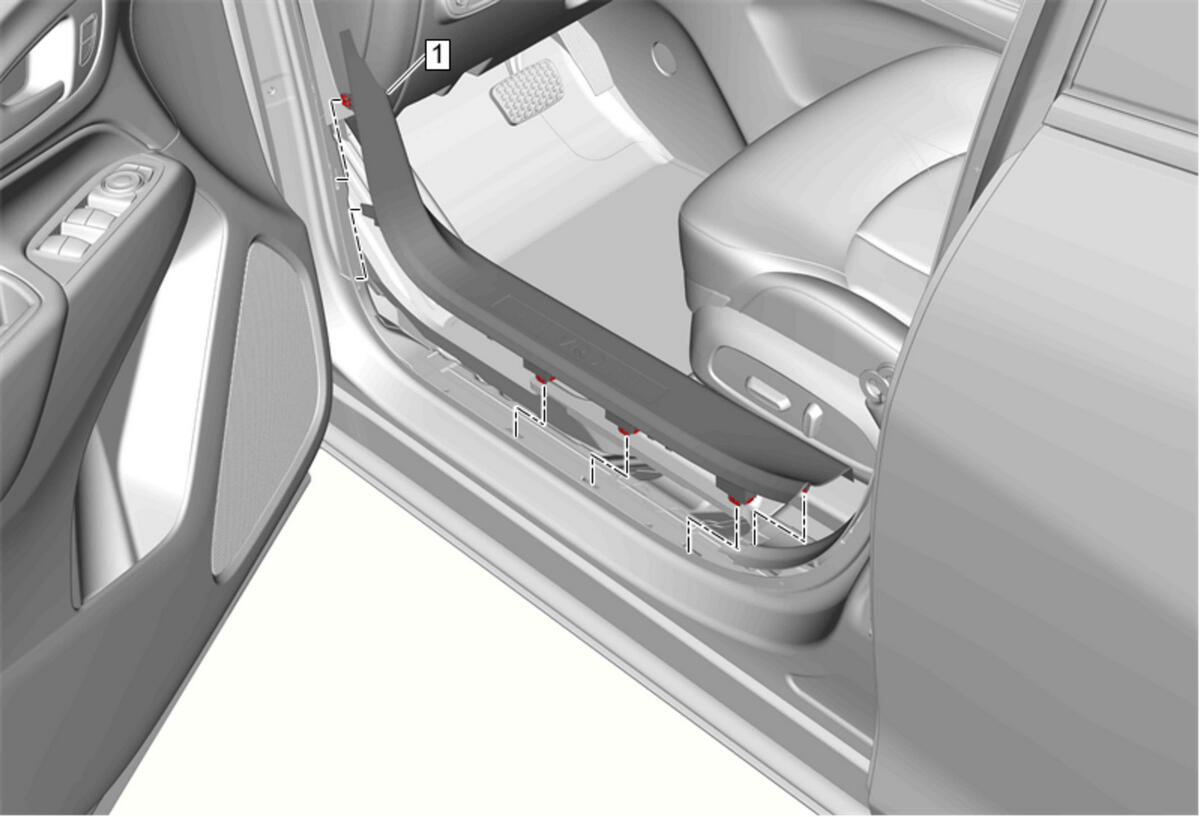

| Callout |
Component Name |
| 1 |
Front Side Door Sill Garnish Molding Procedure
- Starting at the rear of the garnish molding, pull upward at the B-Pillar joint to disengage garnish molding.
- Work your way forward disengaging all of the garnish molding clips then pull rearward to disengage the clip on the forward vertical wall.
- Reposition the front floor panel carpet as needed.
|
