Center Pillar Upper Trim Panel Replacement (Equinox)

WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

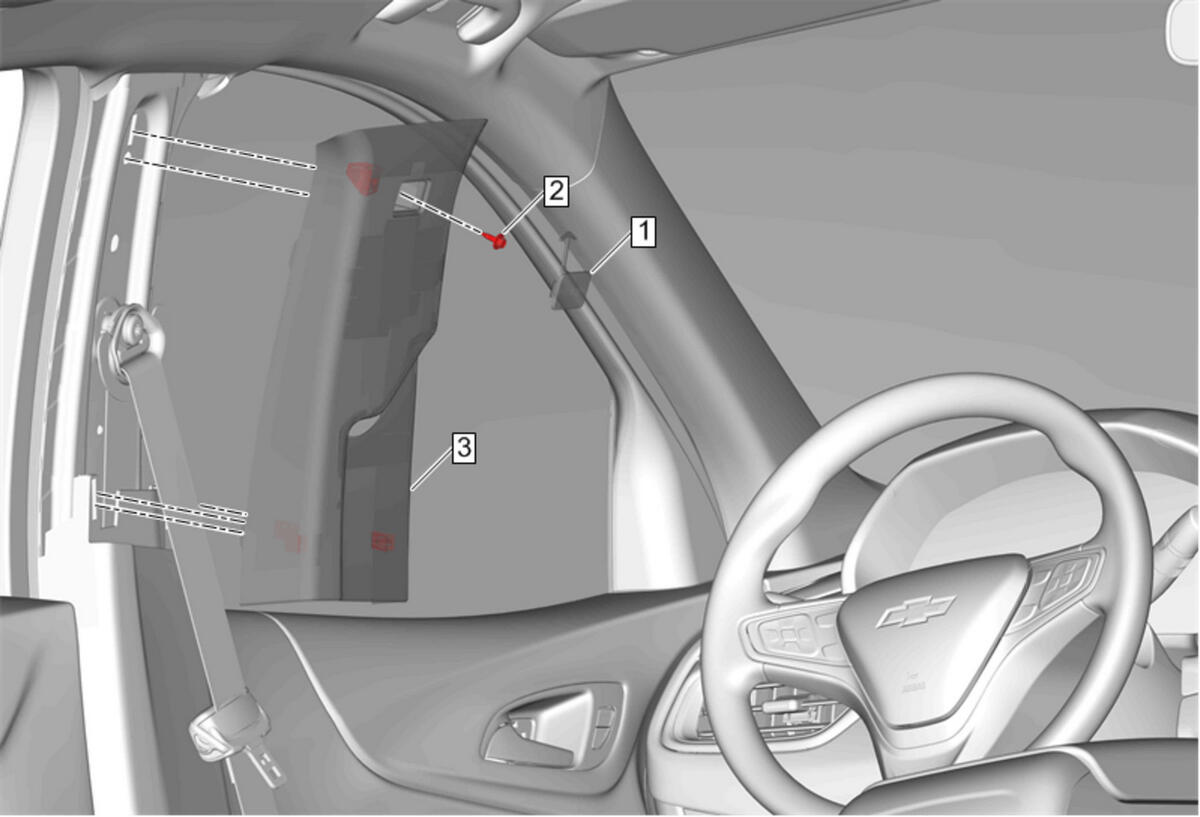

Callout	Component Name
Preliminary Procedures Disable the SIR system. SIR Disabling and Enabling Remove the front seat belt anchor plate tensioner bolt. Front Seat Belt Retractor Replacement
1	Center Pillar Upper Trim Panel Bolt Cap
2	Center Pillar Upper Garnish Molding Bolt CAUTION: Refer to Fastener Caution . Tighten 3 N.m (27 lb in)
3	Center Pillar Upper Trim Panel Procedure Pull the trim panel toward the inside of the vehicle to disengage the retainers and to clear the front seat tensioner assembly. When replacing the center pillar upper trim panel, feed the seat belt through the panel. Ensure the seat belt webbing does not become trapped during installation. Enable the SIR System. SIR Disabling and Enabling
