Control Valve Body Removal
WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

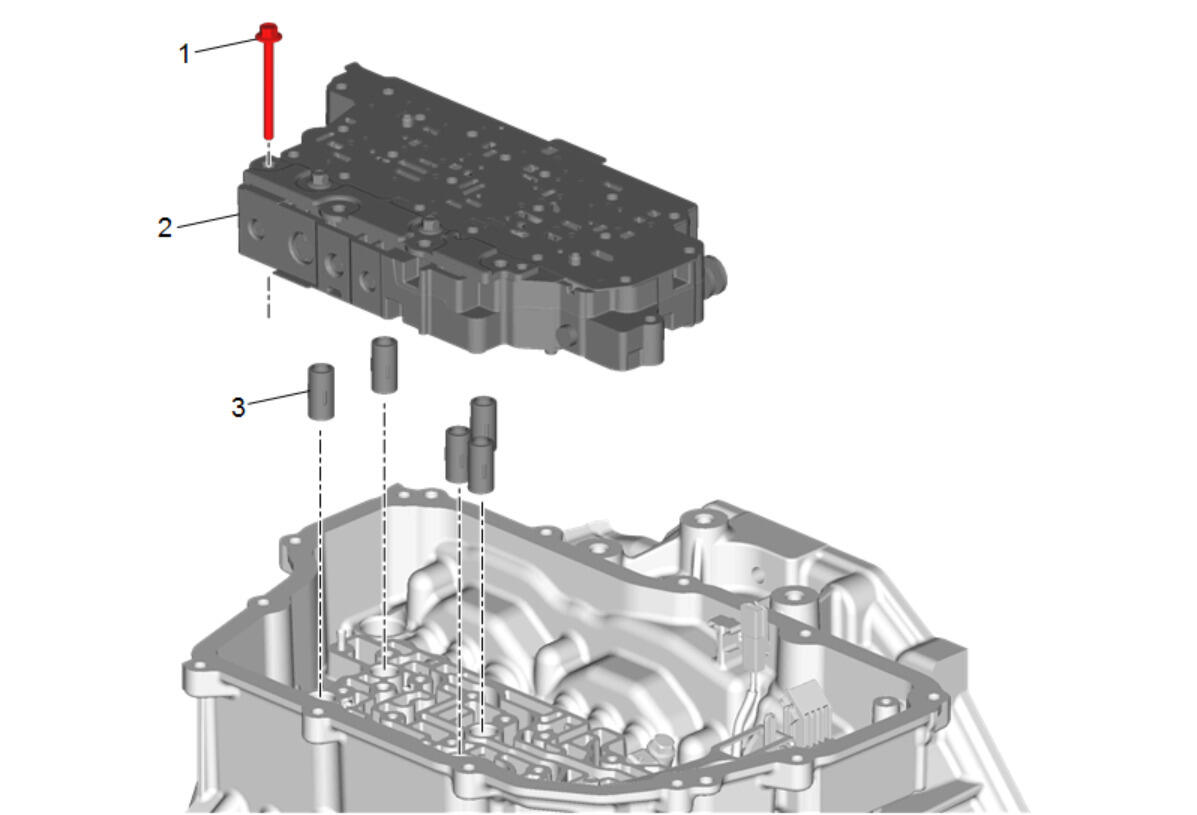

Control Valve Body Removal
| Callout |
Component Name |
| 1 |
Control Valve Body Bolt [5x] |
| 2 |
Control Valve Body |
| 3 |
1-2-3-4 Low and Reverse Clutch Fluid Passage Seal [5x]
Procedure
Remove and DISCARD the seal. |
| 4 |
Control Valve Body Ball Check Valve [6x]
NOTE:
On-Vehicle these may fall out.
|
