Control Valve Body Installation
WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
Control Valve Body Installation

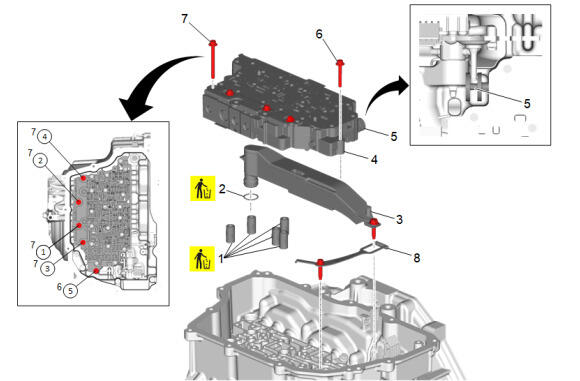

| Callout | Component Name |
|---|---|
| 1 | 1-2-3-4 Low and Reverse Clutch Fluid Passage Seal[5x] Procedure Install a NEW seal. Do NOT reuse the old seal. |
| 2 | Fluid Transfer Pipe Seal Procedure Install a NEW seal. Do NOT reuse the old seal. |
| 3 | Fluid Transfer Pipe
CAUTION:
Refer to Fastener Caution .
NOTE:
The bolt is captured with pipe. Tighten 9 N.m (80 lb in) |
| 4 | Control Valve Body |
| 5 | Manual Valve Procedure Align the manual valve to the rod on the manual shift detent lever. |
| 6 | Control Valve Body Bolt Tighten in sequence 9 N.m (80 lb in) |
| 7 | Control Valve Body Bolt[4x] Tighten in sequence 8 N.m (71 lb in) |
| 8 | Manual Shift Detent Lever Spring
NOTE:
The bolt is captured with spring. Tighten 9 N.m (80 lb in) |
