Instrument Panel Trim Pad Replacement - Right Side (Equinox)
WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

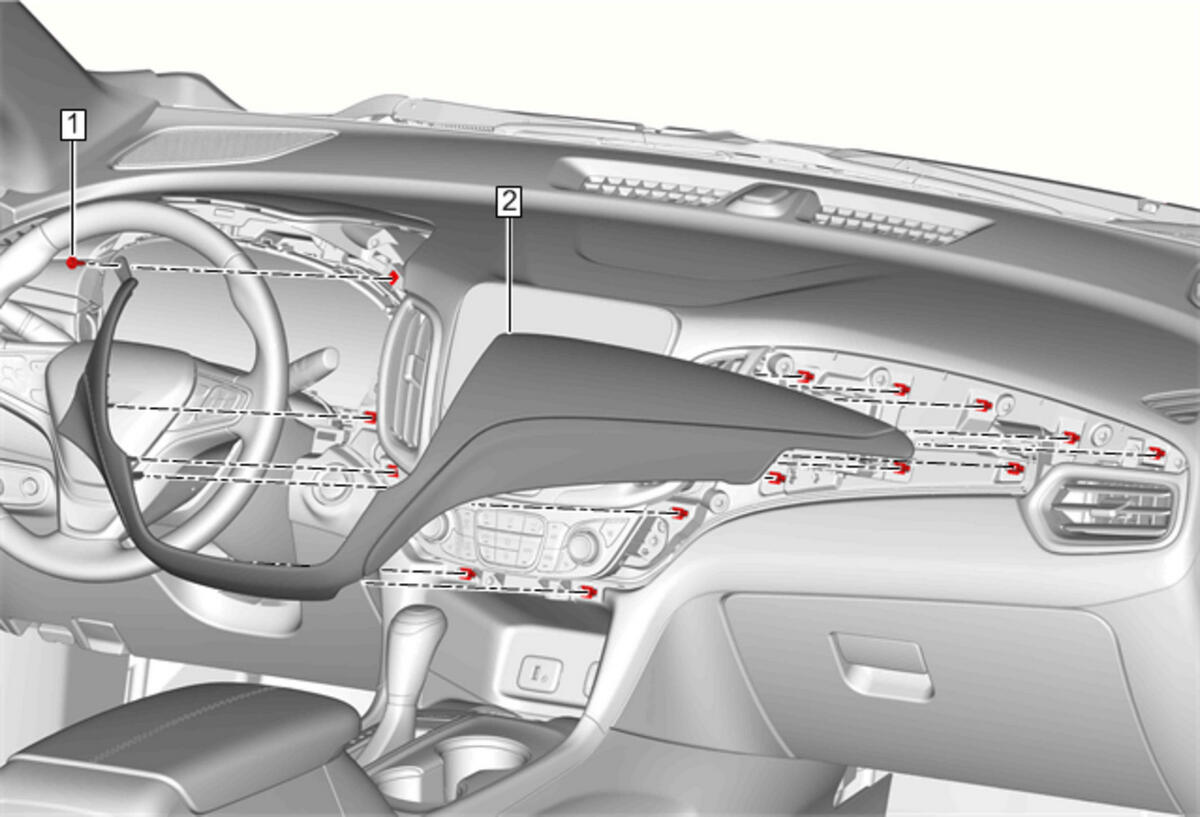

| Callout | Component Name |
|---|---|
| Preliminary Procedure Instrument Panel Cluster Trim Plate Replacement (Equinox) , or Instrument Panel Cluster Trim Plate Replacement (Terrain) |
|
| 1 | Instrument Panel Trim Pad Bolt
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Instrument Panel Trim Pad - Right Side Procedure Use a flat bladed plastic trim tool. |
