Steering Wheel Airbag Replacement (Equinox)

WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

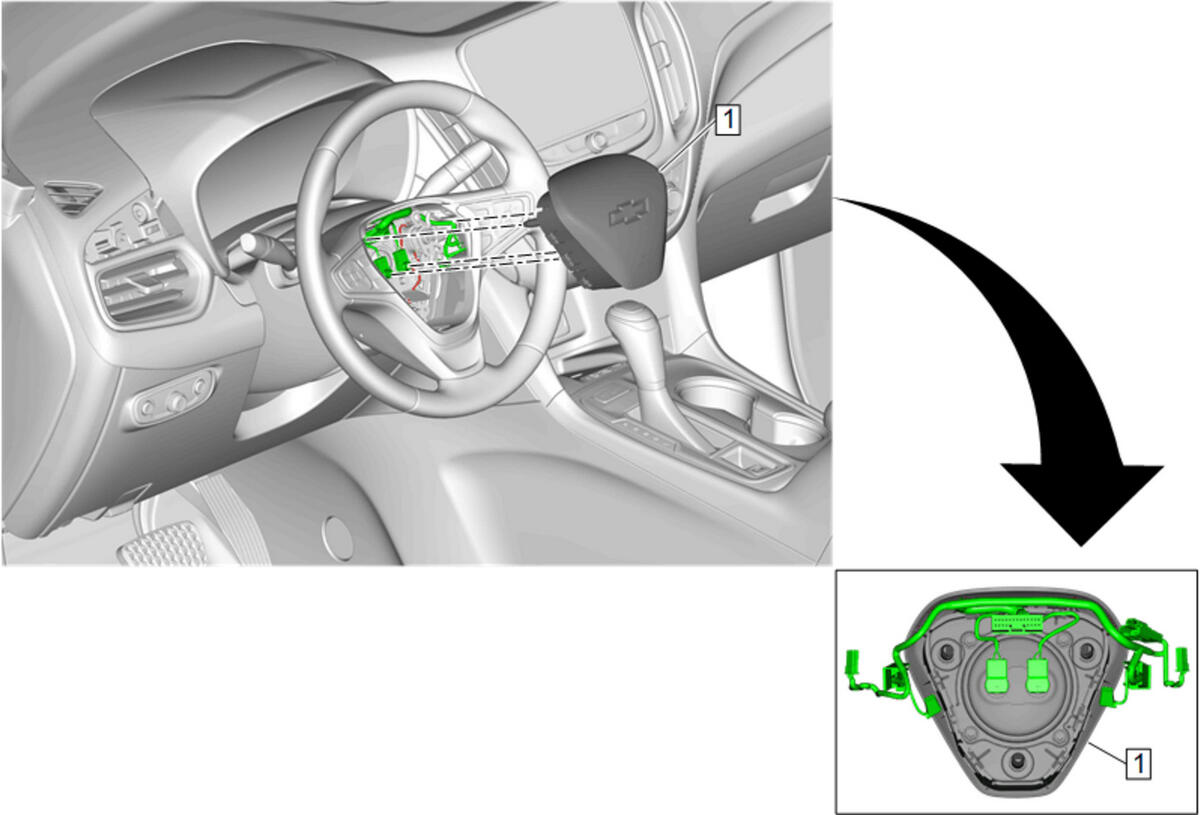

GM4602243Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to SIR Warning .

WARNING:

Refer to SIR Inflator Module Handling and Storage Warning .

Preliminary Procedure Disable the SIR system. SIR Disabling and Enabling
1 Steering Wheel Airbag
WARNING:

After installation of the steering wheel airbag module to the steering wheel, slightly pull the module outward. If there is no give on the airbag module then it is secured correctly. If the airbag module is not fully attached personal injury could result.

Procedure

  1. Fully Insert a 3 mm allen wrench or equivalent tool into both access holes simultaneously on the rear left and right side of the steering wheel.
  2. Apply and keep constant pressure on both allen wrenches or equivalent tool towards the center of the steering wheel to push the spring fastener inward to release the steering wheel airbag from the steering wheel.
  3. Release the connector position assurance (CPA) retainers.
  4. Disconnect the electrical connectors.
  5. Inflatable Restraint Module Handling and Scrapping (Europe) , or Inflatable Restraint Module Handling and Scrapping (Except Europe)
  6. Enable the SIR System. SIR Disabling and Enabling
