Engine Coolant Thermostat Housing Replacement (LYX)

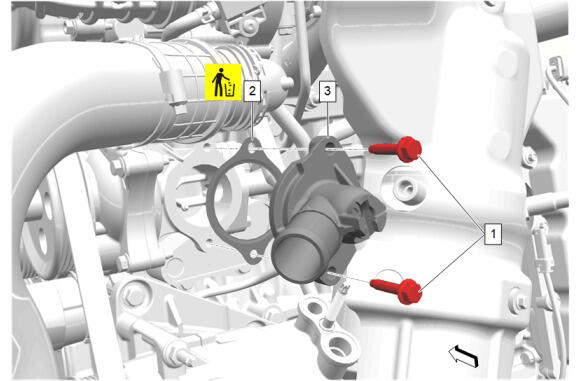

GM4248011Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Radiator Outlet Hose Replacement (LYX)  @ Engine Coolant Thermostat Housing - Disconnect
1 Engine Coolant Thermostat Housing Bolt [ 2x ]
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb/in)
2 Gasket
Procedure
Install a NEW gasket.
3 Engine Coolant Thermostat Housing
