Home >> GMC >> 2021 >> Terrain SL >> Repair and Diagnosis >> Body & Frame >> Mirrors >> Schematic Wiring Diagrams >> Outside Rearview Mirror Wiring Schematics >> Outside Rearview Mirrors (Without A45 or A74)

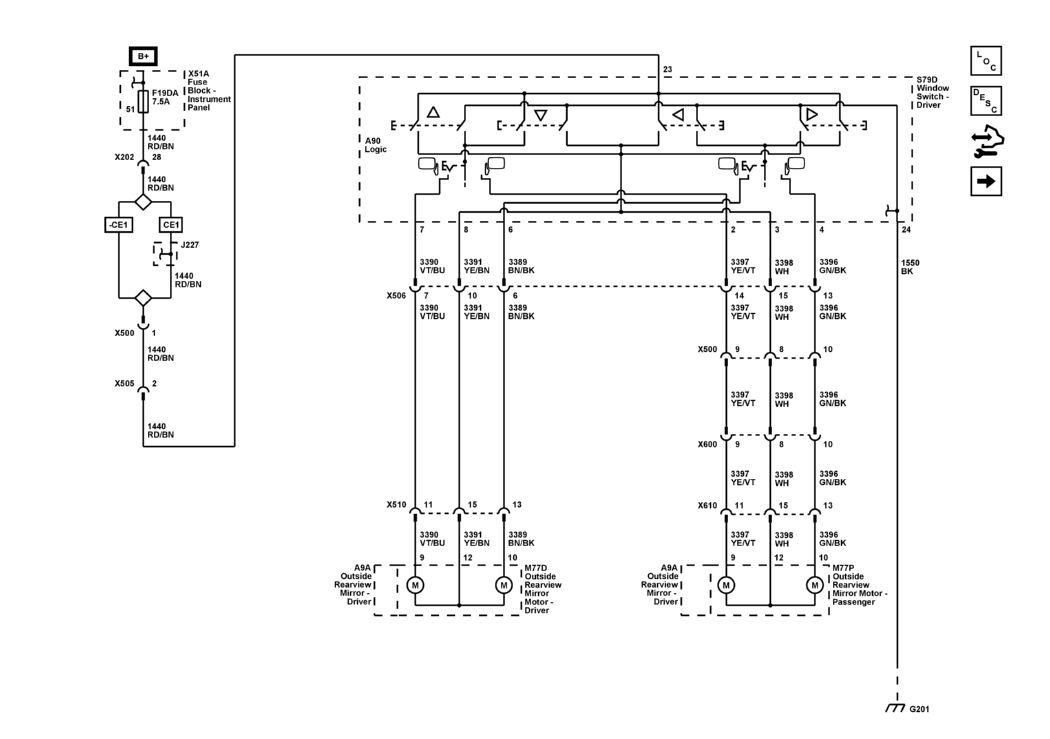

Outside Rearview Mirrors (Without A45 or A74)

GM5491110

Courtesy of GENERAL MOTORS COMPANY
