Installation Procedure

  1. GM4599595Courtesy of GENERAL MOTORS COMPANY

    Power Brake Booster Vacuum Pipe (1) - Install

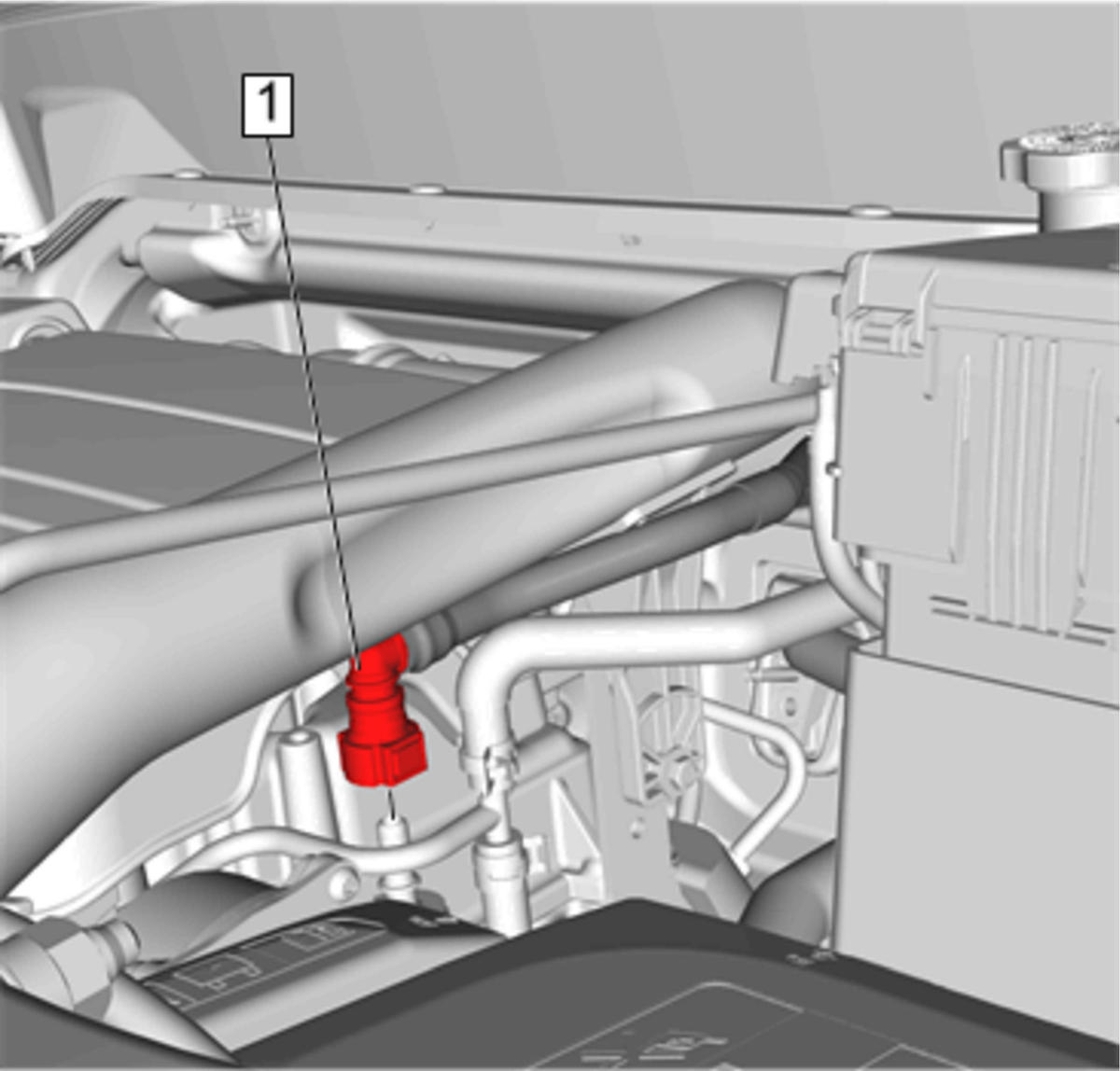

  2. GM4599591Courtesy of GENERAL MOTORS COMPANY

    Quick Connect Fitting (1) - Connect

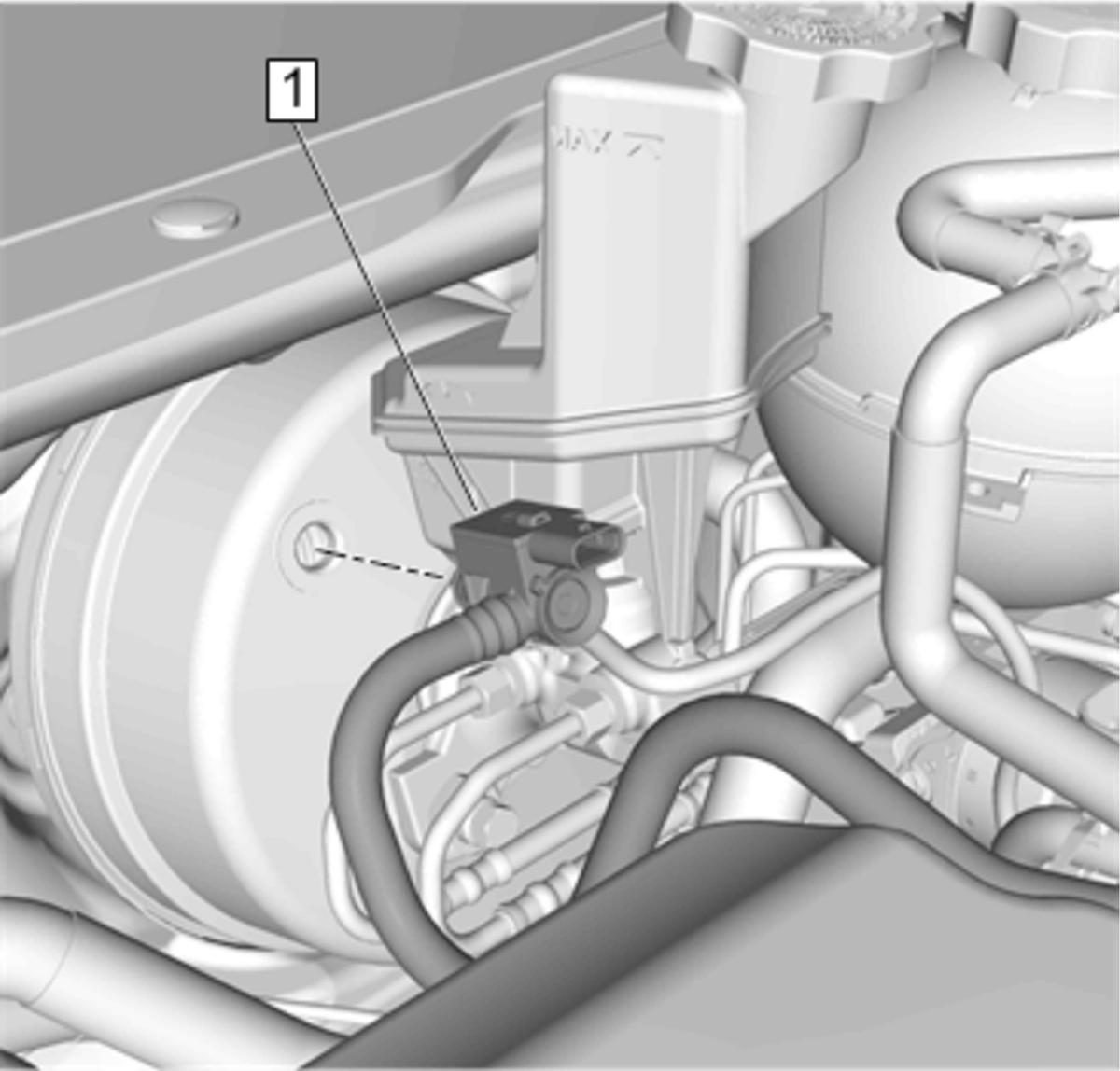

  3. GM4599029Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    A small amount of denatured alcohol may be used as a lubricant for assembly.

    Power Brake Booster Vacuum Sensor (1) - Install

  4. GM4599026Courtesy of GENERAL MOTORS COMPANY

    Power Brake Booster Vacuum Sensor Electrical Connector (1) - Connect
