Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

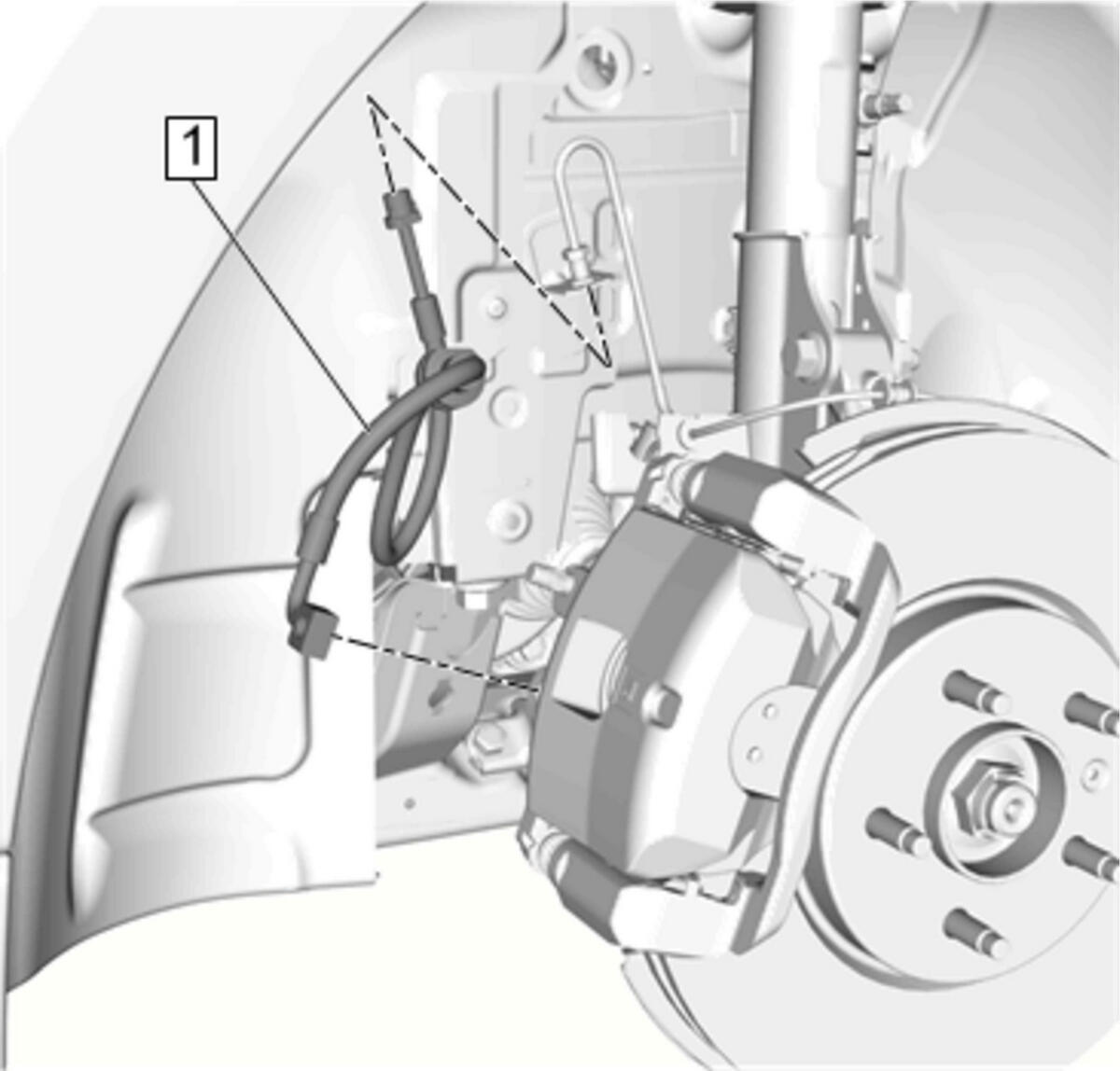

Front Brake Hose (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Install NEW brake hose fitting gaskets.

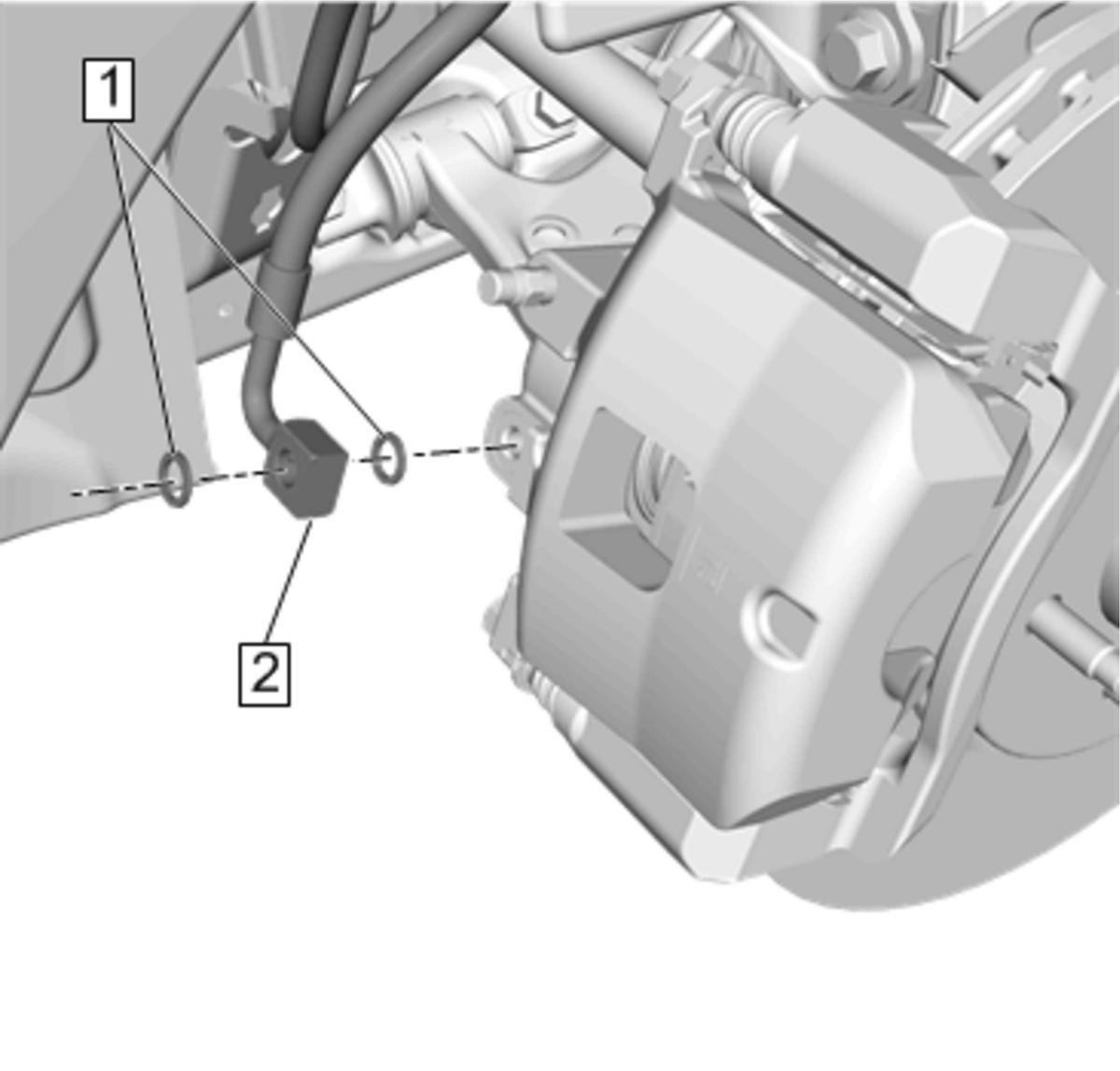

Brake Hose Fitting Gasket (1) @ Brake Hose Fitting (2) - Install [ 2x ]
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

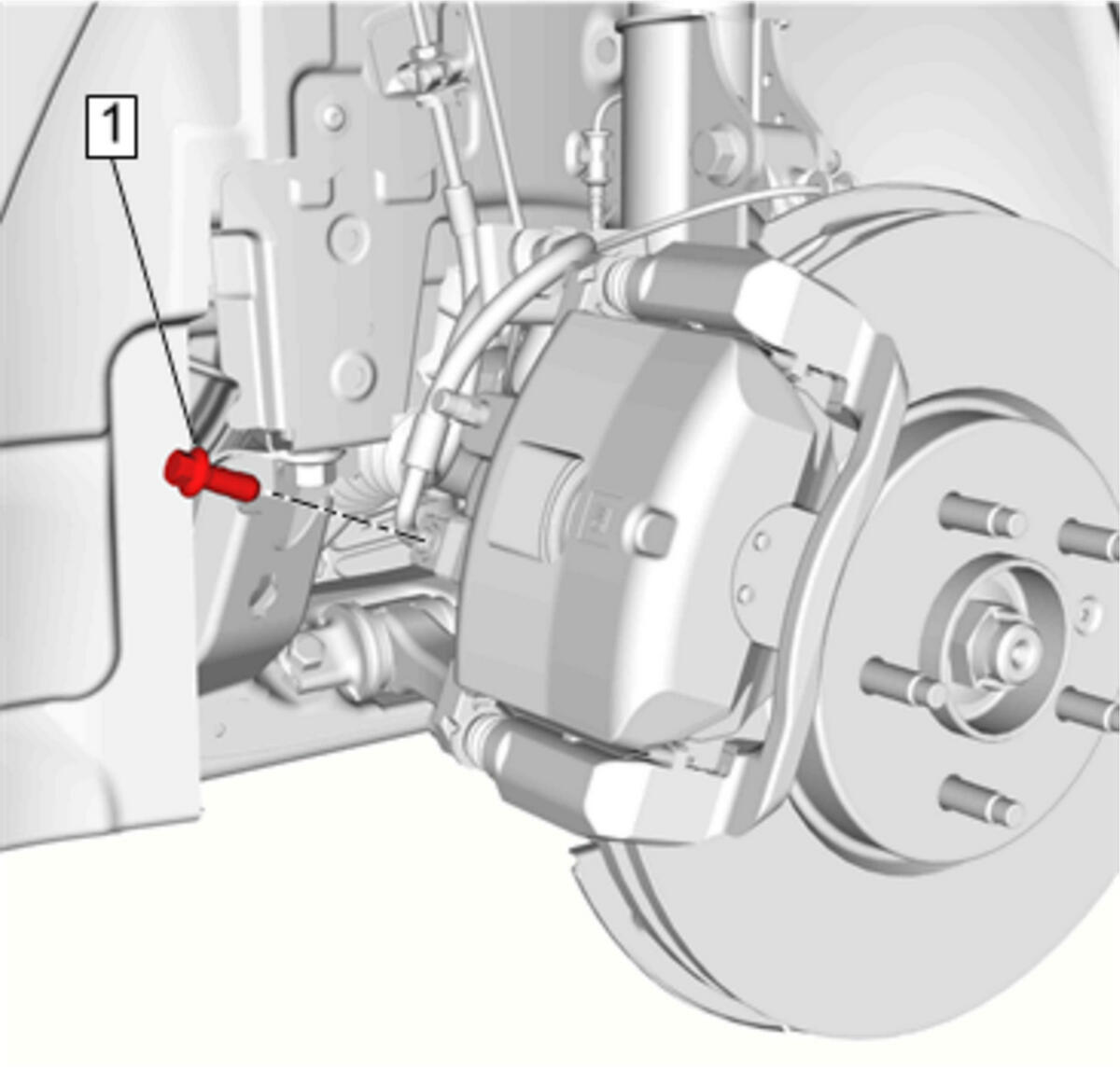

Brake Hose Fitting Bolt (1) - Install 40 N.m (30 lb-ft)
Courtesy of GENERAL MOTORS COMPANY

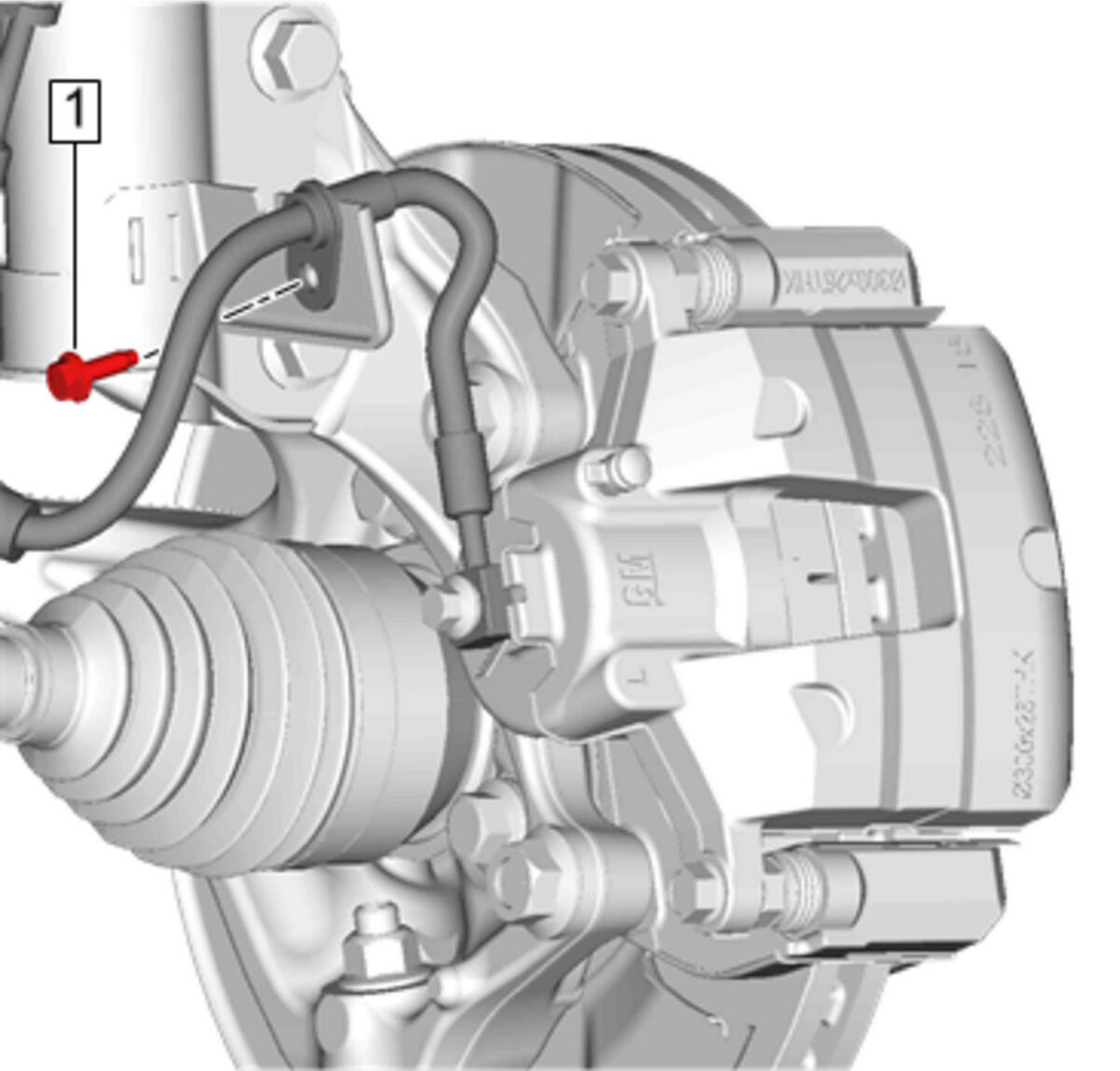

Front Brake Hose Bolt (1) @ Strut Assembly - Install and tighten 9 N.m (80 lb/in)
Courtesy of GENERAL MOTORS COMPANY

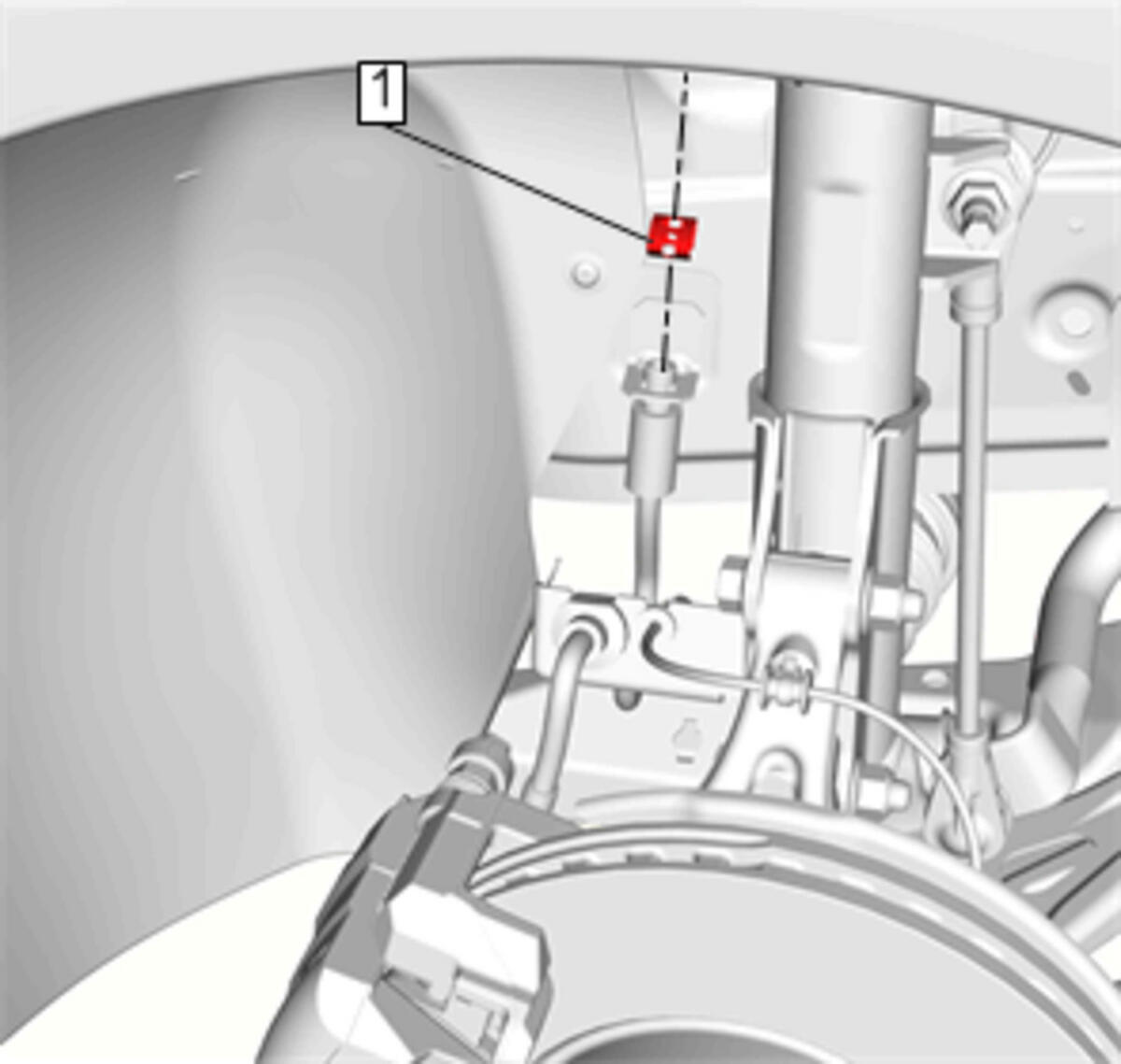

Brake Hose Retainer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

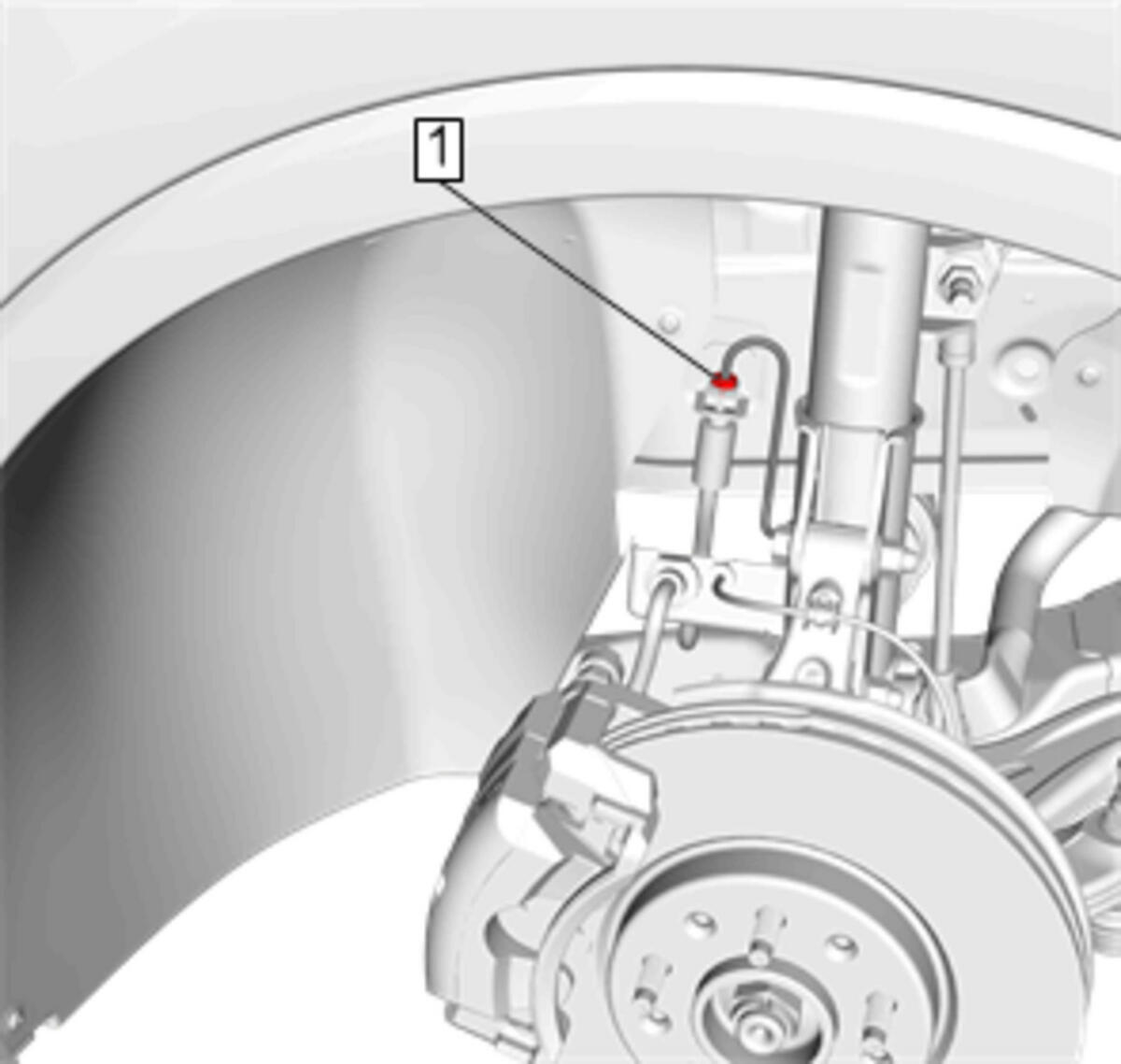

Brake Pipe Fitting (1) - Install 18 N.m (13 lb-ft)
Bleed the brake system. Hydraulic Brake System Bleeding (Manual) , or Hydraulic Brake System Bleeding (Pressure)
Install the tire and wheel assembly. Tire and Wheel Removal and Installation
